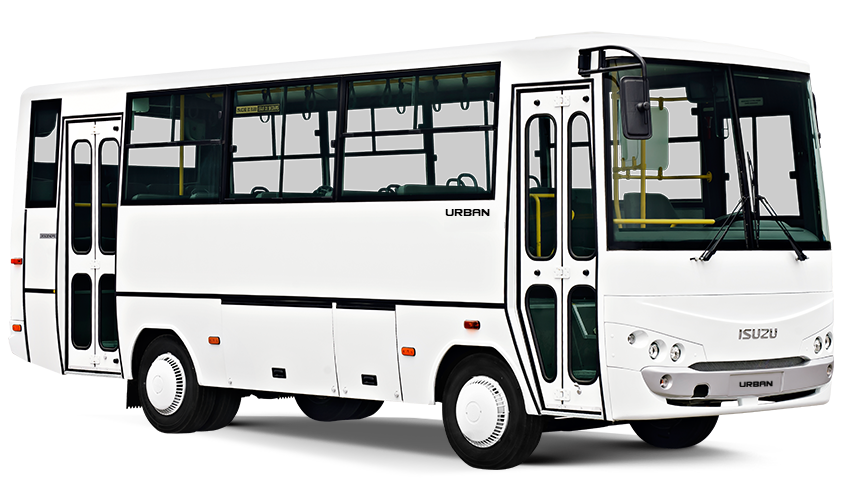

URBAN
Isuzu Urban is now more stylish with renewed front and rear appearance.
It is very safe with full air dual circuit brake system, ABS and LSV (brake weight distribution equalizing system). The new Isuzu Urban is now on the roads with 121 hp turbo engine, wide inner space for public transportation and modifiable seating layout.
Technical Features
| Maximum Length | 6998 |
| Maximum Width | 2200 |
| Maximum Height | 2904 |
| Wheelbase | 3365 |
| Front Track Width | 1780 |
| Rear Track Width | 1525 |
| Front Overhang | 1468 |
| Rear Overhang | 2165 |
| Inner Height | 1870 |
| Gross Vehicle Weight | 8800 |
| Curb Weight | 4822 – 5225 |
| Front Axle Capacity | 3200 |
| Rear Axle Capacity | 5600 |
| Passenger Capacity | 50 / 50 / 43 / 37 |
| Seats | 17 / 20 / 22 / 27 |
| Standing | 33 / 30 / 21 / 10 |
| Model | 4HG1-T (Euro 2) |
| Type | Turbo Diesel |
| Cylinder | 4 |
| Displacement (cc) | 4570 |
| Max. Power | 89 kW at 3200 rev/min |
| Max. Torque | 323 Nm at 1800 rev/min |
| Clutch | Hyraulic controlled Diaphram spring, single dry type |
| Model | MYY-5T |
| Number of Gears, Type | 5 forward , 1 reverse manual overdrive |
| Final Gear Ratio | 5,857 |
| Max. Speed (km/h) | 115 |
| Gradeability (%) | 28 |
| Turning Radius (mm) | 7850 |
| Front | Steel alloy elliptical leaf spring, dual impact hydraulic telescobic schock absorber and stabilizers |
| Rear | Steel alloy elliptical leaf spring, dual impact hydraulic telescobic schock absorber and stabilizers |
| Front / Rear | Drum / Drum |
| Brake System | Full air, dual circuit brake system with automatic adjuster with ABS |
| Auxiliary Brake | Vacuum Assisted Exhaust Brake, Emergency brake acting on rear axle |
| Steering System | Hydraulic |
| Nominal Voltage | 24V |
| Battery | 24V (2X12V) 70Ah |
| Alternator | 24V – 80A |
| Starter Engine | 24V – 4,0kW |
| Fuel Tank | 100 |
| Tyres | 215/75R17,5 |
Equipments
| Air Conditioner | O |
| Dry Type Air Filter | S |
| Tacograph | O (MTCO) |
| ABS | S |
| Exhaust Brake | S |
| Emergency Exit (Roof Hatch) | S |
| Locked Fuel Tank Cap | S |
| Front Door | Foldable, Double wing, Pneumatic |
| Rear Door | Foldable, Double wing, Pneumatic |
| Front Fog Lamps | Opt |
| Windscreen | One piece, coloured |
| Passanger Windows | 1/2 Sliding, full sliding at the middle |
| Sliding Driver’s Window | S |
| Driver Window with Anti-mist Heater | Opt |
| Sun Visor | S |
| Windscreen Wipers / Washers | 4 speed level |
| Wheel Rims | Plastic |
| Head Restraint for Driver’s Seat | Integrated with seat |
| Pasenger Seats | No Reclining, No Side-sliding |
| Seat Material | Cloth on plastic |
| Cieling Lining | Formica |
| Side Wall Lining | Formica |
| Corridor Lining | Linoleum |
| Steering wheel | Tilt and telescobic |
| Digital Clock | Opt |
| Interior Ceiling Lighting | S |
| Lightening for Corridor and Steps | S |
| CD Player, AM/FM Radio | S |
| Antenna | S |
| Speakers | S |
