Oasis
Home > Anadolu Isuzu > Euro 2 > Oasis
OASIS

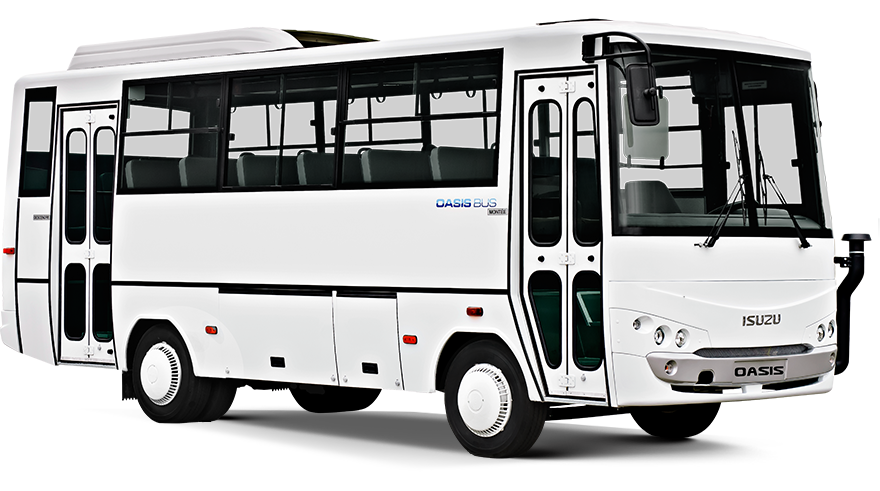

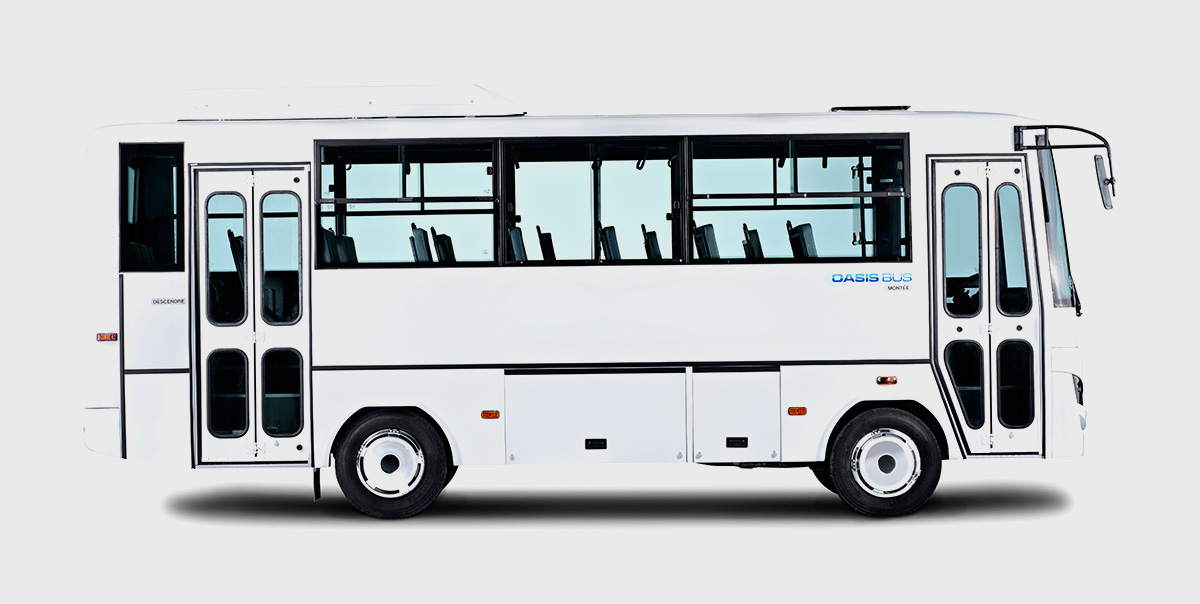

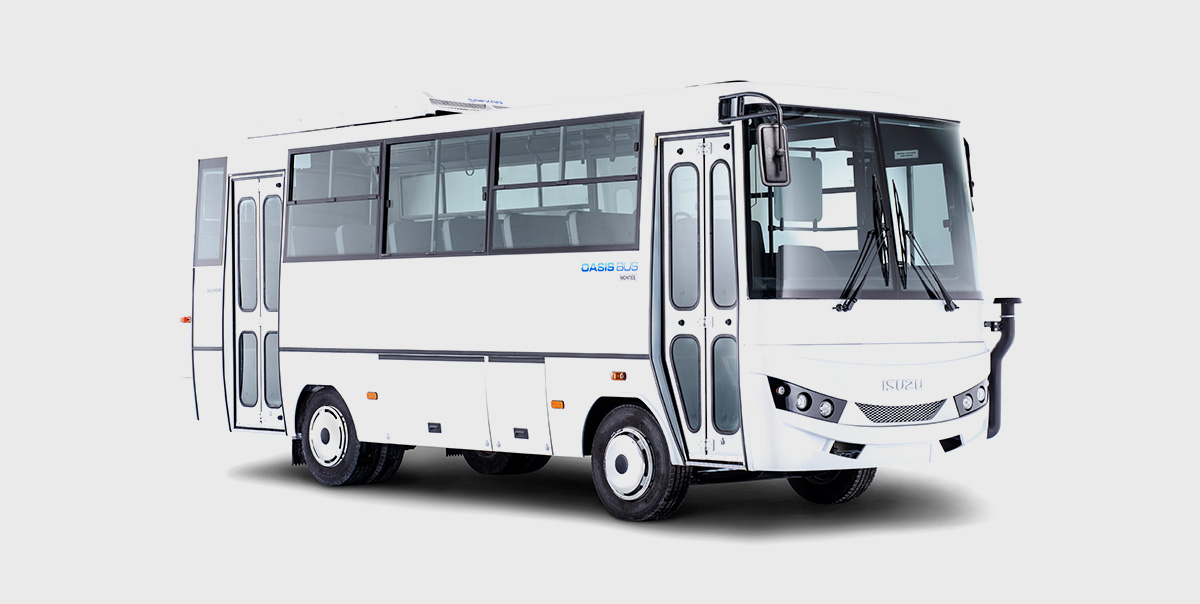

Isuzu Oasis is a version of Classic model designed considering the needs of customers arising from difficult climate and road conditions.
Isuzu Oasis is a version of Classic model designed considering the needs of customers arising from difficult climate and road conditions. A snorkel type air filter has been added to the front end so that the vehicle can deliver ultimate performance under the dusty and sandy (Sub-saharan) road conditions.
Technical Features
| Maximum Length | 6998 |
| Maximum Width | 2200 |
| Maximum Height | 2904 |
| Wheelbase | 3365 |
| Front Track Width | 1780 |
| Rear Track Width | 1525 |
| Front Overhang | 1468 |
| Rear Overhang | 2165 |
| Inner Height | 1870 |
| Gross Vehicle Weight | 8800 |
| Curb Weight | 4822 – 5225 |
| Front Axle Capacity | 3200 |
| Rear Axle Capacity | 5600 |
| Passenger Capacity | 35 |
| Seats | 35 (Inc. folding seats) |
| Model | 4HG1-T (Euro 2) |
| Type | Turbo Diesel |
| Cylinder | 4 |
| Displacement (cc) | 4570 |
| Max. Power | 88 kW at 3200 rev/min |
| Max. Torque | 322 Nm at 1800 rev/min |
| Clutch | Hyraulic controlled Diaphram spring, single dry type |
| Model | MYY-5T |
| Number of Gears, Type | 5 forward , 1 reverse manual overdrive |
| Final Gear Ratio | 5,857 |
| Max. Speed (km/h) | 115 |
| Gradeability (%) | 28 |
| Turning Radius (mm) | 7850 |
| Front | “Steel alloy elliptical leaf spring, dual impact hydraulic telescobic schock absorber and stabilizers” |
| Rear | “Steel alloy elliptical leaf spring, dual impact hydraulic telescobic schock absorber and stabilizers” |
| Front / Rear | Drum / Drum |
| Brake System | Full air, dual circuit brake system with automatic adjuster |
| Auxiliary Brake | Vacuum Assisted Exhaust Brake, Emergency brake acting on rear axle |
| Steering | Hydraulic |
| Nominal Voltage | 24V |
| Battery | 24V (2X12V) 70Ah |
| Alternator | 24V – 80A |
| Starter Engine | 24V – 4,0kW |
| Fuel Tank (lt) | 100 |
| Tyres | 215/75R17,5 |
Equipments
| Air Conditioner | Opt |
| Dry Type Air Filter | S(Special type suitable for desert conditions) |
| Tacograph | Opt (MTCO) |
| Exhaust Brake | S |
| Emergency Exit (Roof Hatch) | S |
| Locked Fuel Tank Cap | S |
| Front Door | Foldable, Double wing,Pneumatic |
| Rear Door | Foldable, Double wing,Pneumatic |
| Windscreen | Double piece , coloured |
| Passanger Windows | “1/2 Sliding, full sliding at the middle |
| Head Restraint for Driver’s Seat | Integrated with seat |
| Pasenger Seats | No Reclining, No Side-sliding |
| Seat Material | Vinyl (S), Cloth (Opt) |
| Cieling Lining | Formica |
| Side Wall Lining | Formica / Mocquette |
| Corridor Lining | Linoleum |
| Luggage Carpet | Opt |
| Steering wheel | Tilt and telescobic |
| Interior Ceiling Lighting | S |
| CD Player, AM/FM Radio | S |
| Antenna | S |
| Speakers | S |
