GRAND TORO

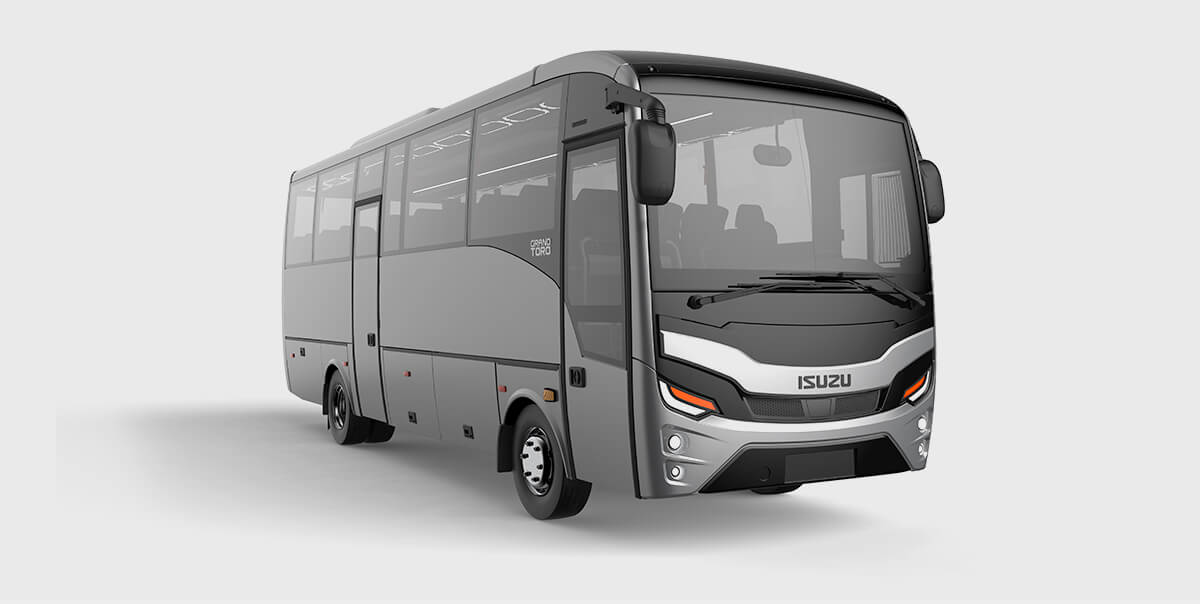

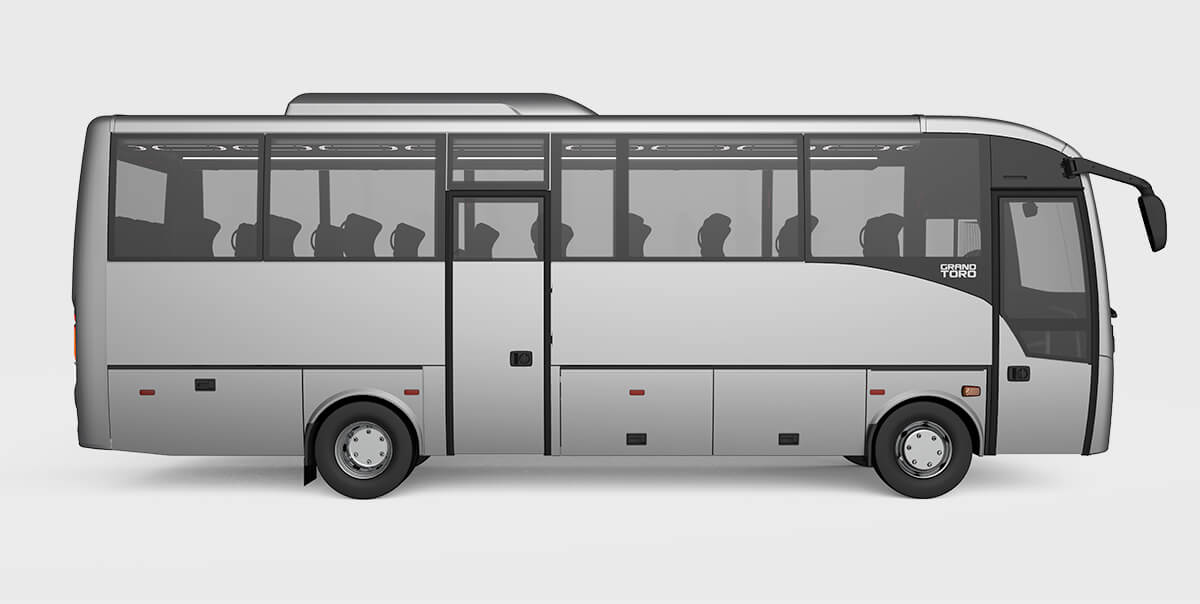

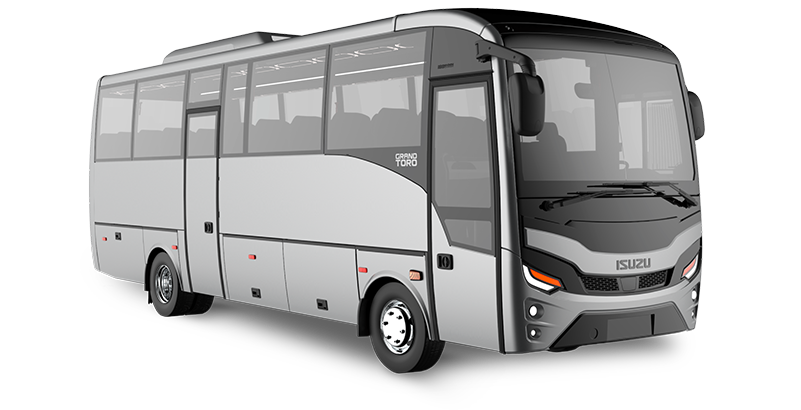

Anadolu Isuzu’s 8,5 meter medium size coach, Grand Toro, has Euro 6 Cummins engine which produces 206 HP at 2300 rpm.
Grand Toro is an 8.5 m medium size coach which is an ideal partner for short and medium-haul journeys of service, touristic and airport transportations. With its capacity up to 37 seats, Grand Toro offers a high level of comfort to its driver and passengers.
Technical Features
| Maximum Length | 8516 |
| Maximum Width | 2350 |
| Maximum Height | 3368 |
| Wheelbase | 4475 |
| Front Overhang | 1669 |
| Rear Overhang | 2372 |
| Gross Vehicle Weight | 11480 |
| Model | CUMMINS ISB4.5 E6 |
| Type | Commonrail Turbo Diesel Intercooler |
| Cylinders | 4 |
| Engine Volume | 4500 |
| Maximum Power (kw(HP)/rpm) | 151 (206) / 2300 |
| Maximum Torque (Nm/rpm) | Maximum Torque (Nm/rpm) |
| Model | ZF 6S 1010 BO MT (S), Allison T3270R xFE AT (Opt) |
| Number of Gears | 6 Forward, 1 Reverse |
| Clutch | Hydraulic Actuated With Diaphram Spring and Single Dry Plate |
| Steering System | Hydraulic |
| Tyres | 245/70 R17.5 136/134 |
| Front | Parabolic Steel Alloy Leaf Springs |
| Rear | Air Suspension |
| Front / Rear | Disc / Disc |
| Service | Full Air Brake System, Dual Circuit, Electronical actuated |
| Parking Brake | Air Actuated, Operating on Rear Axle |
| Auxiliary Brake | Vacuum assisted exhaust brake (The vehicle with retarder does not have an exhaust brake),Parking brake acted on rear tyres and retarder |
| Fuel Tank Capacity (lt) | 190 lt |
| Fuel Tank Cap Lock | S |
| Diesel Exhaust Fluid Tank (lt) | 31 lt |
| Luggage Capacity (m3) | 4,6 |
| Carpet Covering | Opt |
| Luggage Compartment Lighting | S |
| Central Locking System | Opt |
| Interior Luggage Racks | S |
| Nominal Voltage | 24V |
| Battery | 24V (2x12V)-180Ah |
| Standard Seat Layout | 35 Seats + 1 Crew + 6 Standing** |
| Optional Seat Layouts | 37 Seats + 6 Standing** |
Equipments
| Pre-heater | S |
| Front Blower Box | S |
| Convector Heater | S |
| Digital Air Conditioner | S |
| A/C Dashboard Unit For Driver | S |
| Cruise Control | S |
| Speed Limitor | S |
| Tachograph | S |
| ABS, ASR (EBS) | S |
| ESC/ESP | S |
| AEBS | S |
| LDWS | S |
| Hill Holder | Opt |
| Bus Stop Brake (BSB) | Opt |
| Parking Sensor | S |
| Fire Extinguisher | S |
| Equipment For Tire Inflation | S |
| Roof Emergency Exit & Ventilation Hatch | S |
| Engine Compartment Fire Detection and Automatic Fire Supression System | S |
| Retarder | S |
| Rear View Cam | Opt |
| Fog Lamp | S (Front) |
| Day Time Running Lamps (DRL) | S(Led) |
| Side Stripe Stickers | Opt |
| Metallic Colour | Opt |
| Front Door | On the Right, Single Wing, Pneumatic, Outward Swing |
| Rear Door | On the Right, Single Wing, Pneumatic, Outward Swing |
| Remote Control | S |
| Wheelchair lift door | Opt |
| Type | Single Piece, Tinted |
| Layers of Glass | Double glazed (S), Single glazed (Opt) |
| Wheelchair Lift | Opt |
| Door Step Lights (LED) | S |
| Ski Box Brackets and Sockets | Opt |
| Trailer Towing Hook | Opt |
| Extra Third Stop Lamp | S |
| Reverse Gear Warning Beeper | S |
| Driver’s Seat | Ergonomic, Air Operated, Adjustable |
| Overhead Locker For Driver | S |
| Driver Window | Manual Sliding with Heating (S), Electrical Controlled (Opt) |
| Front Door Window | Single Glazed with Heating |
| Windscreen Blind | S (Electrically Controlled Optional) |
| Electrically Controlled Side Mirrors | S |
| Heated Long Arm Mirrors | S |
| Close-proximity Exterior Mirror | S |
| Crew Seat | S (If 37+1 seats config. selected, Crew seat is not available) |
| USB Charger | S |
| Seat Upholstery | Cloth (S) / Leather (Opt) |
| Reclining | S (for Class3 version) |
| Rear bed-type seats | Opt |
| Side sliding | S (for class3 version) |
| Footrests | Opt |
| Armrests | Aisle Side (S) |
| Seat Back Magazine Net | S |
| Seat Back Tray | S |
| Safety Belts | 2 Points (S) ; 3 Points (Opt) |
| USB Charger (Passenger Seats) | Opt |
| Ceiling Upholstery | Cloth |
| Side Wall Upholstery | Cloth |
| Floor Covering | Carpet on Vinyl Floor (S) / Wood E ect (Opt) |
| Interior Lighting | Continuous On Luggage Rack Edge |
| Multi Sets (Crew Call Button, Reading Lamps) | S |
| Curtains | S |
| WC – Integrated/Modular | Opt* |
| Refrigerator Vertical (Rear) | Opt |
| Refrigerator Horizontal (Rear) | Opt |
| Refrigerator + Water Boiler (Rear Combi Set) | Opt* |
| Entertainment Systems | S (7inch Touch Multimedia with USB/AUX/FM/AM/(RDS) / Bluetooth / Handfree) |
| Speaker | S |
| Digital Clock | S |
| Microphone & Amplifier | S |
| Monitor / LCD | S |
| Camera System and DVR | Opt |
