More shift range with TÜMOSAN transmission system with 12 forward and 12 reverse gear option.

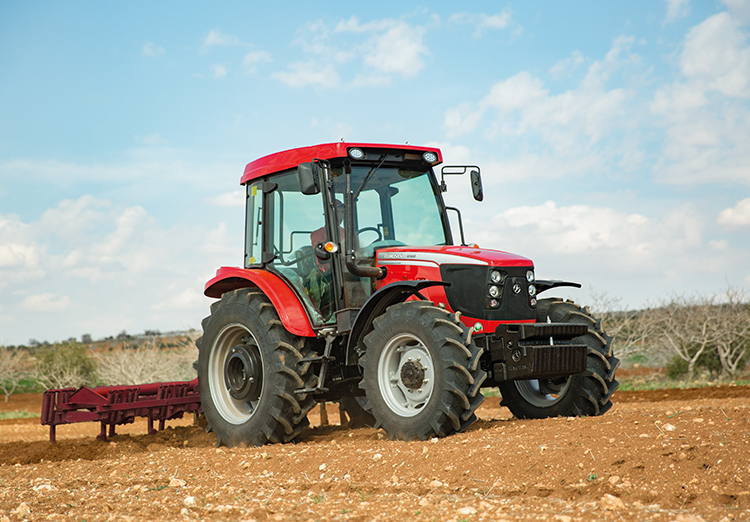

TÜMOSAN 8185E Tractor
- With its equipped, 4-cylinder Turbo Intercooler, 85 Horsepower TÜMOSAN Engine which has been designed by TÜMOSAN Engineers, it ensures high traction performance and low fuel consumption.
- Comfortable driving with the steering system allowing height and depth adjustment.
- Superior driving control with digital dashboard and audio warning system.
- With its Radio/ MP3 player which is offered in the standard product, it cares the operator’s comfort as the priority.
- Ease of use with the hydraulic control system which is positioned right next to the operator allows ergonomic use.
- Ease of use with its mechanical controlled dual-traction PTO shaft and load PTO shaft.
- With its dual-speed PTO shaft option, it ensures high work efficiency in jobs that do not require much power.
- Availability to work with hydraulic connection equipment thanks to its 6 hydraulic power outputs.
- With its lift drawbar system, ease of choosing the appropriate height for any type of connection.
- Hydraulic system with a lifting capacity of 4000 kg.
- Uninterrupted operation with its powerful and dynamic lighting group.
- With sunshade and cabin model options.
- Available to operate all day long with its 115-liter fuel tank.
Technical Features
| Emission Level | Stage IIIA (Tier 3) |
| Number of Cylinders / Aspiration | 4 / Turbo Intercooler |
| Maximum Torque Speed (rpm) | 1500 |
| Air Filter Type | Dry |
| Nominal Engine Power (HP) | 85 |
| Cylinder Volume (Liters) | 3,9 |
| Maximum Torque (Nm) | 340 |
| Fuel Tank Capacity (Liters) | 115 |
| Type | Mechanical – Synchromesh |
| Forward – Reverse Shuttle Lever | Mechanical |
| Rear Differential Lock | Mechanical |
| Gear Box | 12 Forward – 12 Reverse |
| 4WD Engagement | Mechanical |
| Front Differential Lock (4WD) | Electro-Hydraulic |
| Type | Independent |
| Control Type | Mechanical |
| Engine Speed @ 540 rpm PTO Speed | 2225 |
| Ground PTO | Standard |
| PTO Speed | 540 – 540E |
| Engine Speed @ 540E rpm PTO Speed | 1590 |
| Lift O-Matic | Standard |
| Lifting Capacity (kg) | 4000 |
| Hydraulic Auxiliary | 6 |
| Air Conditioning | Optional |
| Radio / MP3 Player | Standard |
| Front Counter Weights (unitxkg) | 10×40 |
| Rear Counter Weights Cabin (unitxkg) | 4×50 |
| Rear Counter Weights Canopy (unitxkg) | 6×50 |
| No Load Mass (kg) (with 4WD Cab) | 3500 |
| 1. Option 4WD-Front | 12.4/11-24 |
| 2. Option 4WD-Front | 12.4/11-24 |
| 3. Option 4WD-Front | 340/85R24 |
| 4. Option 4WD-Front | 360/70R24 |
| 1. Option 4WD-Rear | 13.6/12-38 |
| 2. Option 4WD-Rear | 18.4/15-30 |
| 3. Option 4WD-Rear | 380/85R38 |
| 4. Option 4WD-Rear | 460/85R30 |
