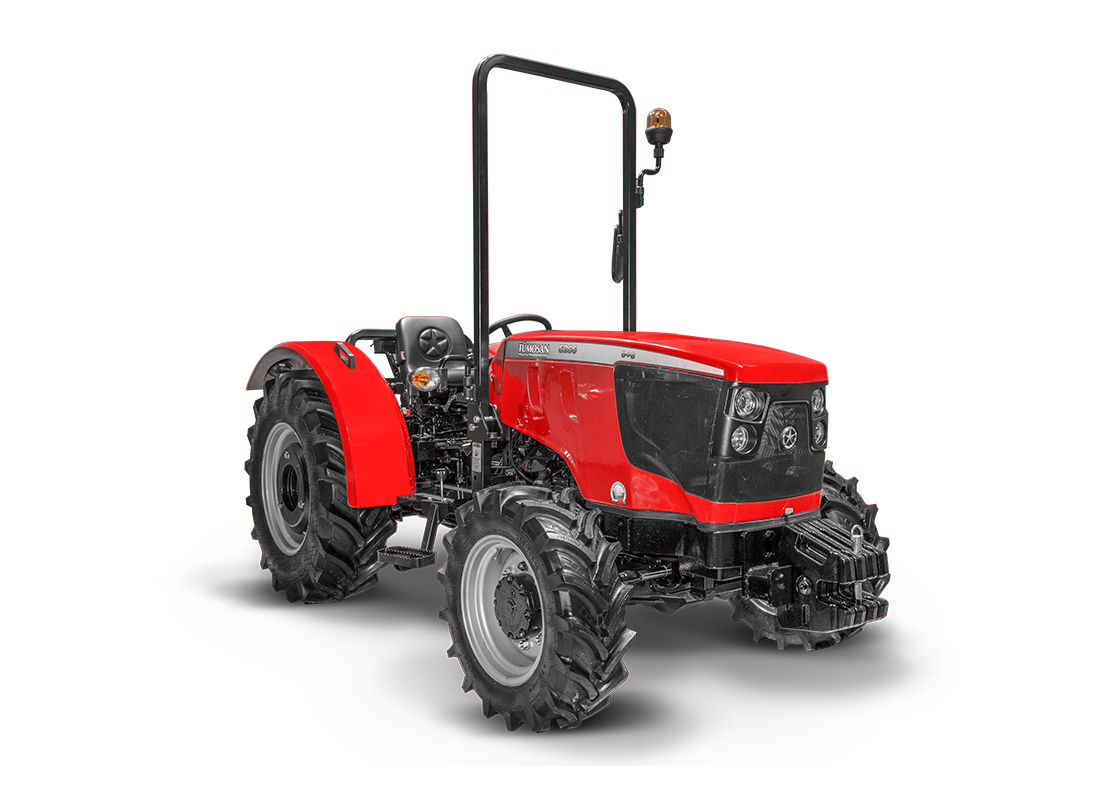

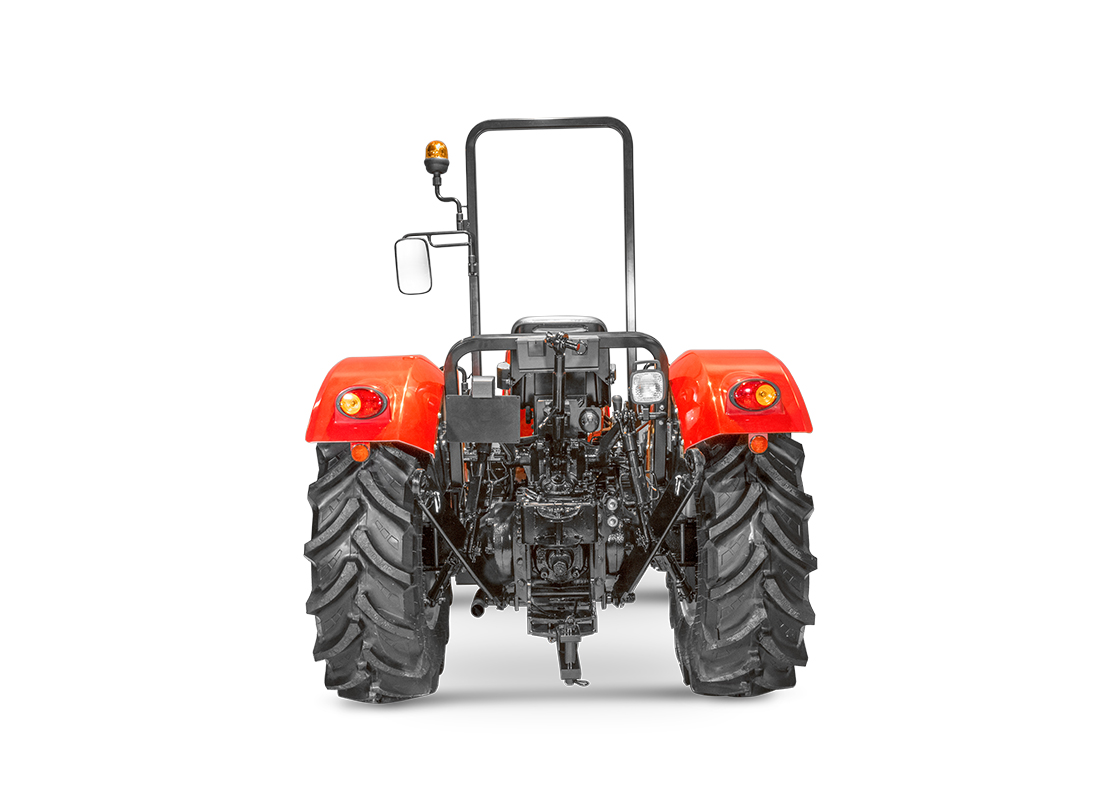

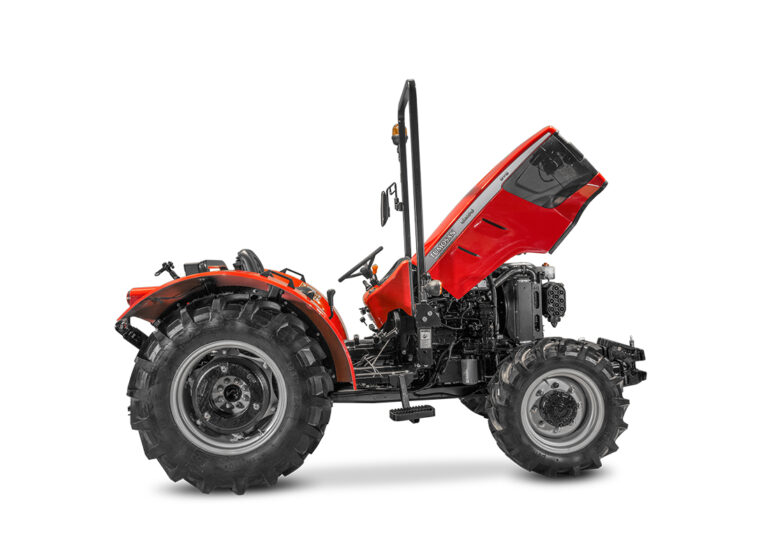

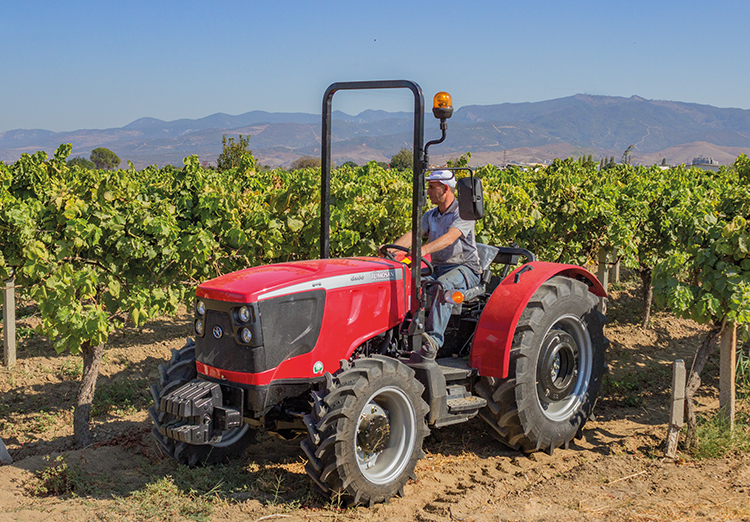

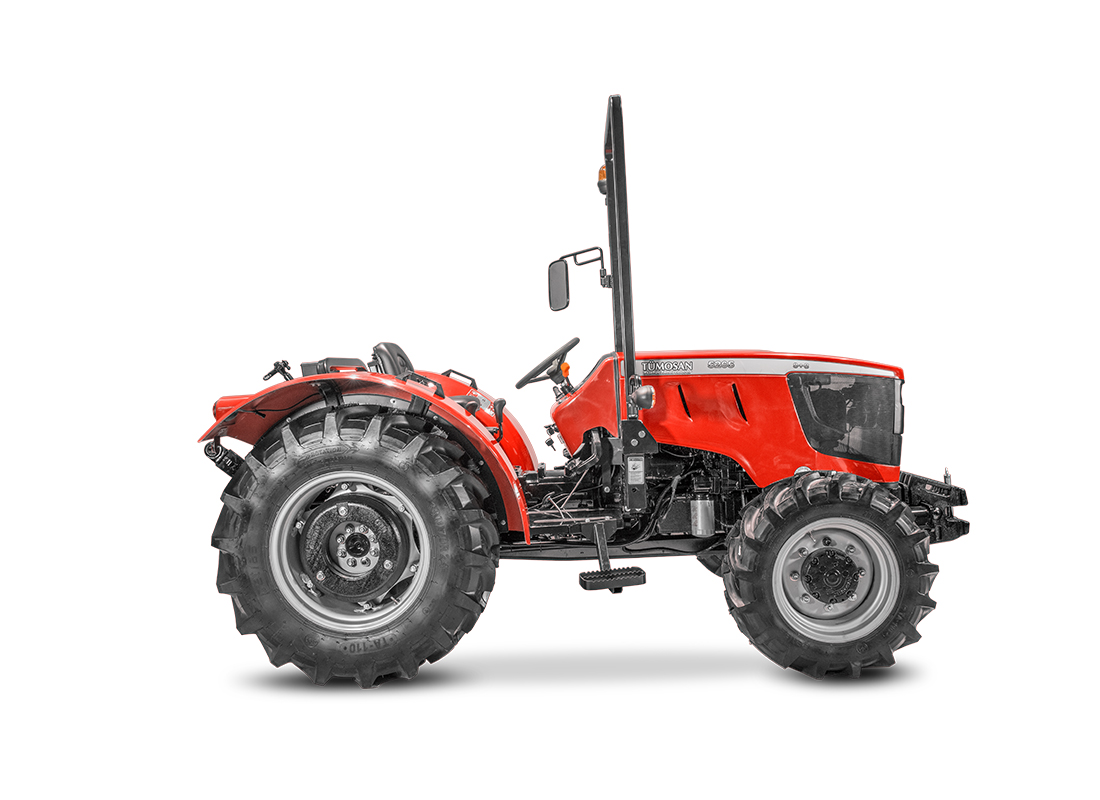

TÜMOSAN 5255S Tractor
With its equipped, 3-cylinder Turbo Intercooler, 55 Horsepower TÜMOSAN Engine which has been designed by TÜMOSAN Engineers, it ensures high traction performance and low fuel consumption.

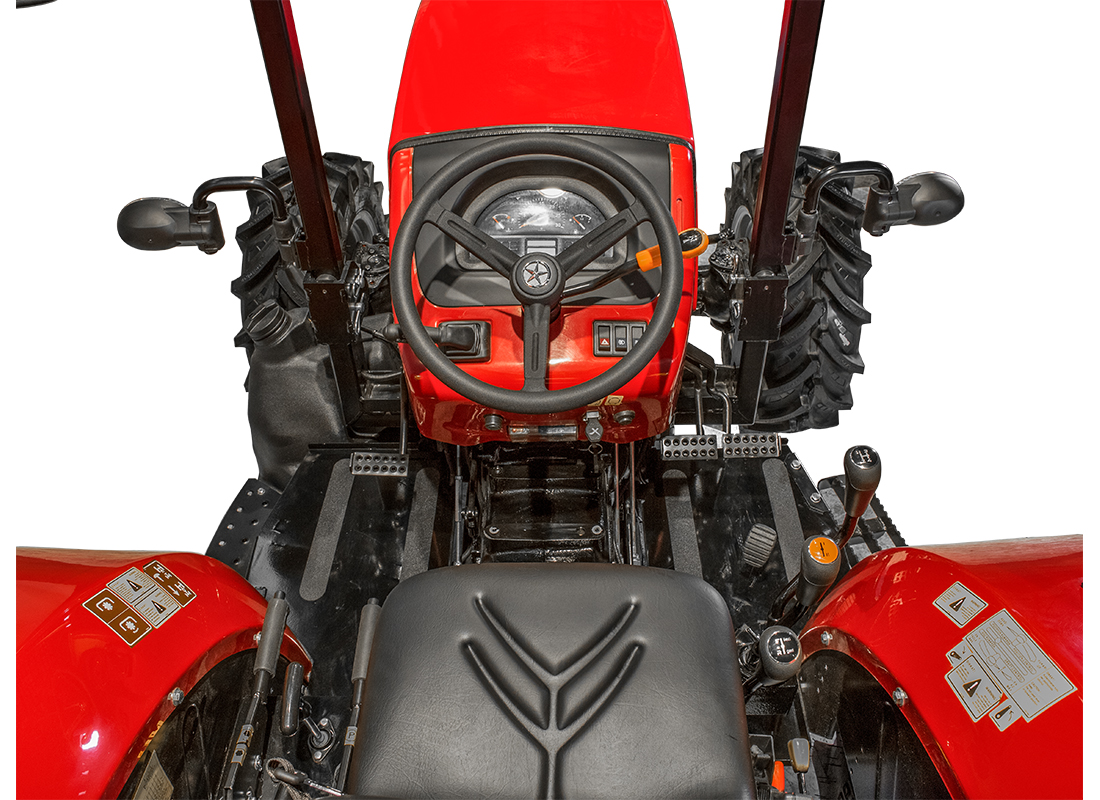

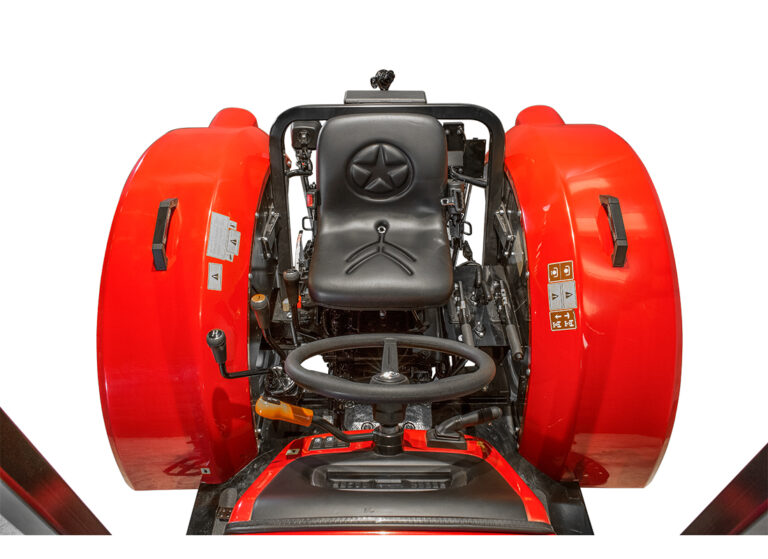

- With its control levers supported by ergonomic dashboard and hydraulic control system, the comfort of the operator is kept as the priority.
- With its 2 hydraulic PTO shafts, it facilitates using the hydraulically connected agricultural equipment.

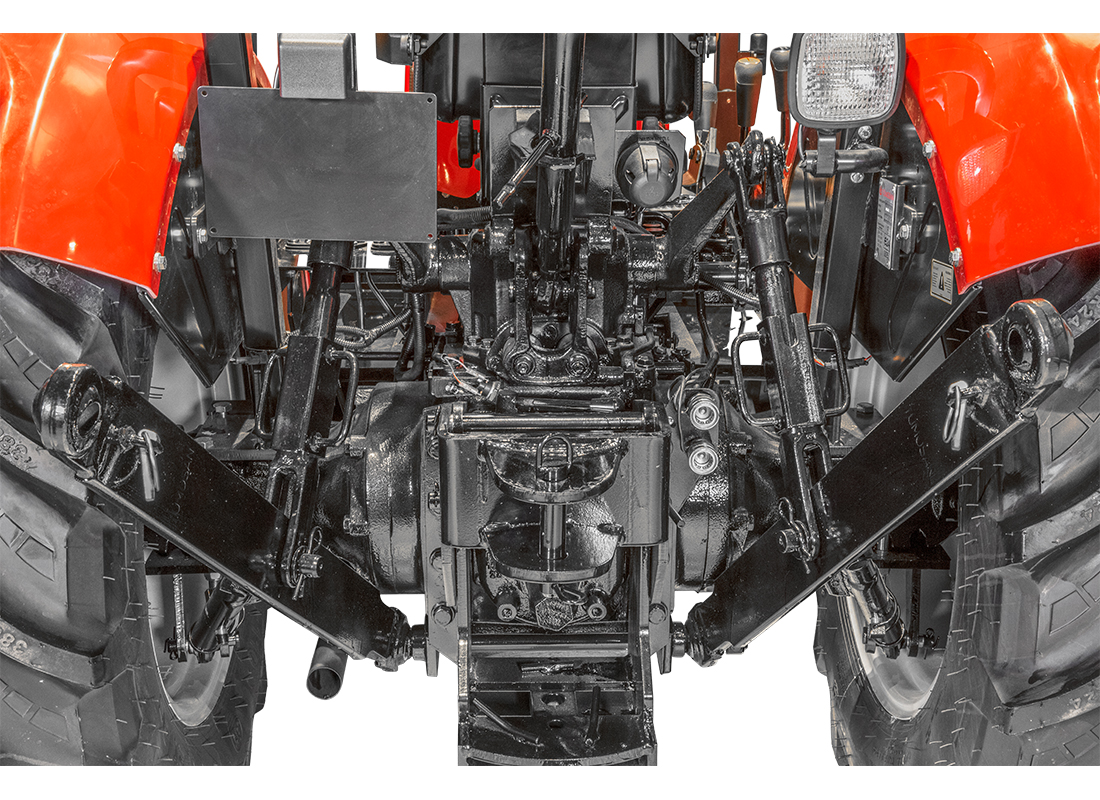

- A powerful hydraulic system with 2200 kg lifting capacity.
- With its dual-speed PTO shaft option, it ensures high work efficiency in jobs that do not require much power.
- With the option of 2WD and 4WD.
A short garden tractor with 8 + 8 gears offers quick and easy operation.
Technical Features
| Emission Level | Stage IIIA (Tier 3) |
| Number of Cylinders / Aspiration | 3 / Turbo Intercooler |
| Maximum Torque Speed (rpm) | 1500 |
| Air Filter Type | Dry |
| Nominal Engine Power (HP) | 55 |
| Cylinder Volume (Liters) | 2,9 |
| Maximum Torque (Nm) | 220 |
| Fuel Tank Capacity (Liters) | 65 |
| Type | Mechanical – Synchromesh |
| Forward – Reverse Shuttle Lever | Mechanical |
| Rear Differential Lock | Electro – Hydraulic |
| Gear Box | 8 Forward – 8 Reverse |
| 4WD Engagement | Mechanical |
| Front Differential Lock | Electro – Hydraulic |
| Type | Independent |
| Control Type | Mechanical |
| Engine Speed @ 540 rpm PTO Speed | 2035 |
| Ground PTO | Standard |
| PTO Speed | 540-540E |
| Engine Speed @ 540E rpm PTO Speed | 1586 |
| Lift O-Matic | Standard |
| Lifting Capacity (kg) | 2200 |
| Hydraulic Auxiliary | 4 |
| Front Counter Weights (unitxkg) | 6×20 |
| Rear Counter Weights 28” Rim (unitxkg) | 4×50 |
| Rear Counter Weights 24” Rim (unitxkg) | 4×35 |
| No Load Mass (kg) | 2450 |
| 1. Option 2WD-Front | 6.0-16 |
| 2. Option 2WD-Front | 6.50-16 |
| 1. Option 2WD-Rear | 13.6/12-24 |
| 2. Option 2WD-Rear | 13.6/12-28 |
| 1. Option 4WD-Front | 280/70R16 |
| 2. Option 4WD-Front | 280/70R20 |
| 1. Option 4WD-Rear | 380/70R24 |
| 2. Option 4WD-Rear | 380/70R28 |
