NOVOCITI

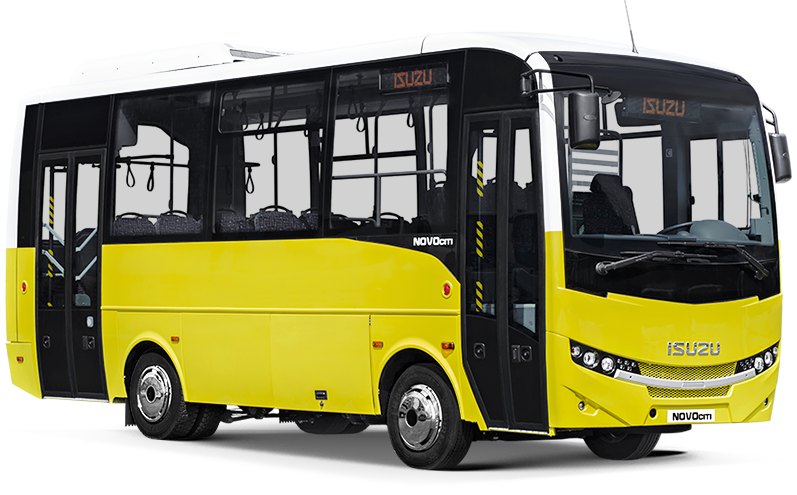

Isuzu Novociti is designed to provide an ideal solution for small municipalities which are operating in several transit routes, including suburban areas with lower populations.

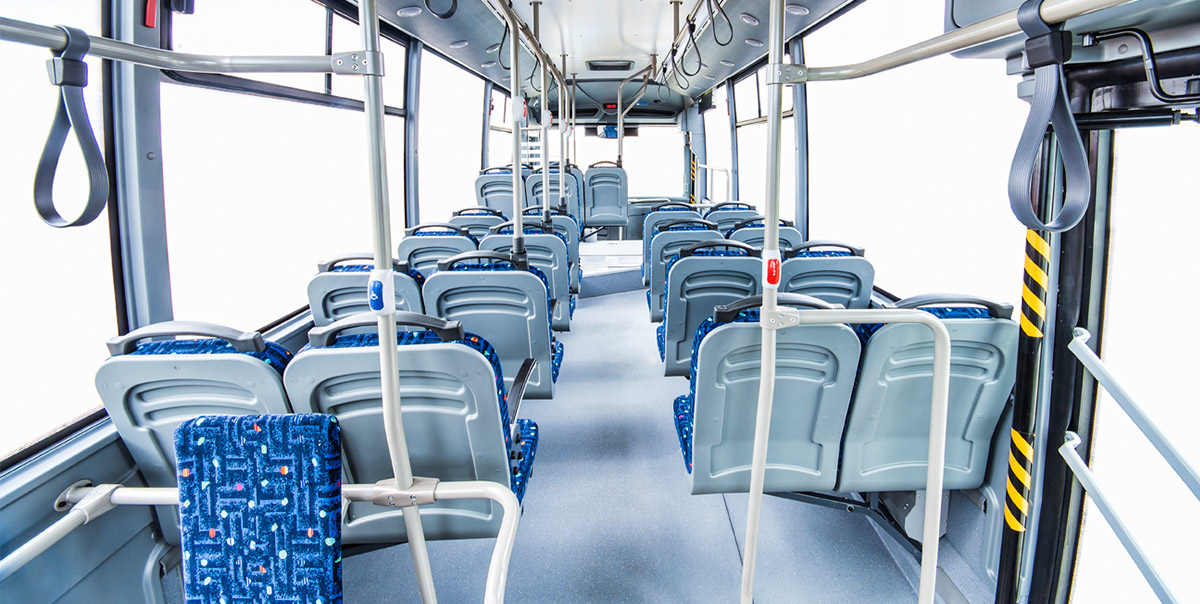

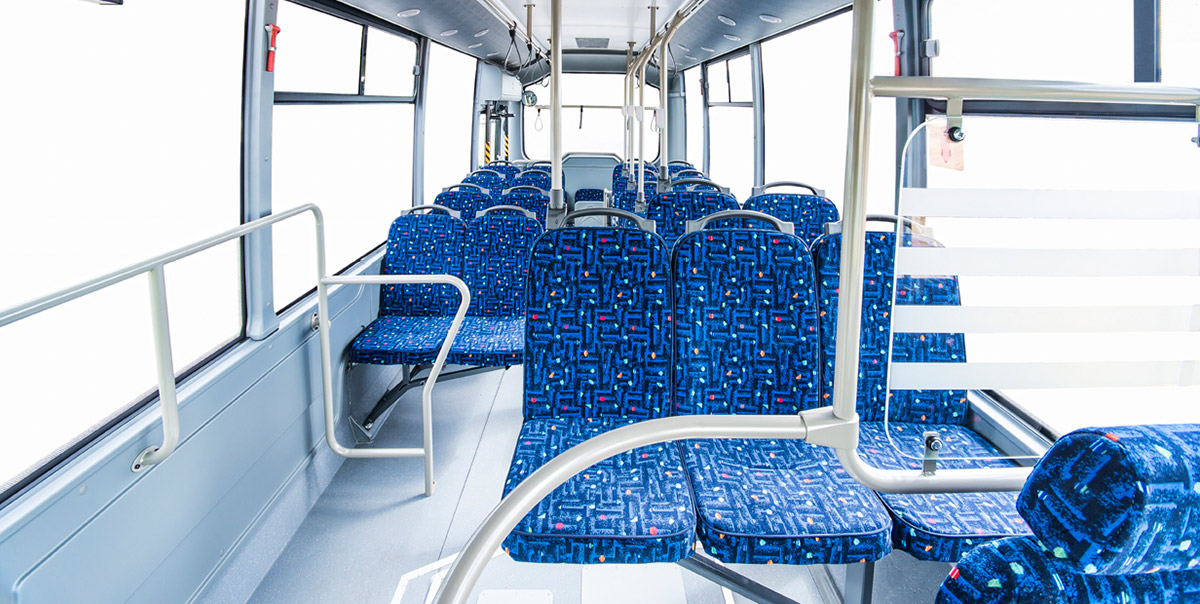

Novociti’s interior is designed to provide the maximum comfort that the passengers would need during a short trip. Two-wings, outward swing doors assure a quick and easy access to the vehicle.
Technical Features
| Maximum Length | 7505 |
| Maximum Width | 2270 |
| Maximum Height | 3271 (with A/C unit) |
| Wheelbase | 3385 |
| Front Overhang | 1695 |
| Rear Overhang | 2425 |
| Front Track Width | 1914 |
| Rear Track Width | 1650 |
| Inner Height | 2170 |
| Gross Vehicle Weight | 9800 |
| Curb Weight | 5200-6000 |
| Front Axle Capacity | 3400 |
| Rear Axle Capacity | 6400 |
| Model | 4HK1-TCC (Euro 2) |
| Type | Commonrail Turbo Diesel Intercooler |
| Cylinders | 4 |
| Displacement (cc) | 5193 |
| Maximum Power (PS/rpm) | 175 / 2600 |
| Maximum Torque (Nm/rpm (Kgm/rpm) | (500 /1600-2600) |
| Clutch | Hydraulic Actuated With Diaphram Spring and Single Dry Plate |
| Model | ISUZU MZZ-6U |
| Number of Gears, Type | 6 forward, 1 reverse, Manual, overdrive |
| Final Gear Ratio | 4,777 |
| Steering System | Hydraulic, Tilt and Telescopic |
| Tyres | 215/75 R17,5 |
| Minimum Turning Radius (mm) | 6450 |
| Gradeability (%) | 29,4 |
| Front | Parabolic Steel Alloy Leaf Springs |
| Rear | Air Suspension |
| Kneeling System | S (Rear Axle Only) |
| Front / Rear | Disc / Disc |
| System | Full Air Brake System with ABS, Dual Circuit, Auto-adjusted |
| Parking Brake | Air Actuated, Operating on Rear Axle |
| Auxiliary Brake | Vacuum Assisted Exhaust Brake (S), Retarder (Opt), Bus Stop Brake (Opt) |
| Fuel Tank Capacity (lt) | 130 |
| Fuel Tank Cap Lock | S |
| Luggage Capacity (m3) | 0,45 |
| Luggage Compartment Lighting | S |
| Electrical System | 24V – 100A |
| Nominal Voltage | 24V |
| Battery | 24V (2X12V)-105 Ah |
| Starter Engine | 24V – 4,5 kW |
| 2 Door Version | 16 (Seated) + 39 (Standing) |
| 2 Door Version | 16 (Seated) + 34 (Standing) + 1 (Wheelchair) |
| 2 Door Version | 21 (Seated) + 33 (Standing) |
| 2 Door Version | 21 (Seated) + 25 (Standing) + 1 (Wheelchair) |
| Folding Seats | 4 Seats (Opt) |
Equipments
| Pre-heater | Opt |
| Air-blowing Type Heater (Front) | S |
| Other | Air-blowing Heater Under Seats |
| Air Conditioner | Digital Air Conditioner |
| A/C Dashboard Unit For Driver | S |
| Tropical A/C | Opt |
| Speed Limitor | S |
| Tachograph | Digital Tachograph (S) / MTCO (Opt) |
| Retarder | Opt |
| ABS | S |
| ASR | S |
| Rear view camera | Opt |
| Parking Sensor | Opt |
| Roof Emergency Exit & Ventilation Hatch | S |
| Immobiliser | S |
| Reverse Gear Warning Beeper | S |
| Metallic Colour | Opt |
| Passenger Window | 1/3 Sliding Windows |
| Single Glazing | S |
| Towing Hook | S |
| Rim caps | Opt |
| Front Door | Double Wings, Pneumatic, Outward Swing |
| Rear | Double Wings, Pneumatic, Outward Swing, Auto-locking System Over 5 km/h Speed (Opt) |
| Remote Control | S |
| Wheelchair / Strollers Ramp | S (Rear Door) |
| Driver’s Seat | Ergonomic, Air Operated, Adjustable |
| Lamp For Driver Seat | S |
| Driver’s Window | Manuel Sliding, Anti-mist Heater |
| Front Door Window | Anti-mist Heater |
| Windscreen Blind | S (Electrically Controlled Optional) |
| Electrically Controlled Mirrors | Opt |
| Close-proximity Exterior Mirror | S |
| Passenger Seat Material | Fabric |
| Ceiling Material | Formica and ABS |
| Side Wall Lining Material | Formica |
| Floor Covering | Vinyl |
| Interior Lighting (Ceiling) | Continuous on Ceiling |
| Stop Sign & Buttons | S |
| Digital Destination Line Indicator | Opt |
| Destination Line Board (Front) | S |
| Destination Line Board (Rear) | Opt |
| Radio & CD Player | S |
| Monitor / LCD | Opt |
| Digital Clock | Opt |
