NOVO ULTRA
Anadolu Isuzu’s well-known medium-size coach series is simply glamorous with its new exterior view.
Both interior and exterior of Novo and Novo Ultra models have been redesigned following a comprehensive customer research programme. The new Euro 2 Isuzu engine for Novo Series produces 175 horsepower at 2600 rpm. Novo Series buses offer seat and luggage capacity for up to 29 passengers. Novo series buses are offered in two different versions to the European markets, one at a “Standard” and the other at “Ultra” comfort level.
Technical Features
| Maximum Length | 7305 |
| Maximum Width | 2282 |
| Maximum Height | 3350 |
| Wheelbase | 3385 |
| Front Overhang | 1650 |
| Rear Overhang | 2270 |
| Front Track Width | 1914 |
| Rear Track Width | 1650 |
| Inner Height | 1930 |
| Gross Vehicle Weight | 9800 |
| Curb Weight | 5700-6450 |
| Front Axle Capacity | 3400 |
| Rear Axle Capacity | 6400 |
| Model | 4HK1-TCC (Euro 2) |
| Type | Commonrail Turbo Diesel Intercooler |
| Cylinders | 4 |
| Displacement (cc) | 5193 |
| Maximum Power (PS/rpm) | 175 / 2600 |
| Maximum Torque (Nm/rpm (Kgm/rpm) | (500 /1600-2600) |
| Model | ISUZU MZZ-6U |
| Number of Gears, Type | 6 Forward, 1 Reverse, Overdrive |
| Final Gear Ratio | 4,777 |
| Clutch | Hydraulic Actuated With Diaphram Spring and Single Dry Plate |
| Steering System | Hydraulic, Tilt and Telescopic |
| Minimum Turning Radius (mm) | 6450 |
| Gradeability (%) | 39,9 |
| Tyres | 215/75 R17,5 |
| Front | Parabolic Steel Alloy Leaf Springs |
| Rear | Air Suspension |
| Front / Rear | Disc / Disc |
| System | Full Air Brake System with ABS, Dual Circuit, Auto-adjusted |
| Parking Brake | Air Actuated, Operating on Rear Axle |
| Auxiliary Brake | Vacuum Assisted Exhaust Brake (S), Retarder (Opt) |
| Fuel Tank Capacity (lt) | 150 |
| Fuel Tank Cap Lock | S |

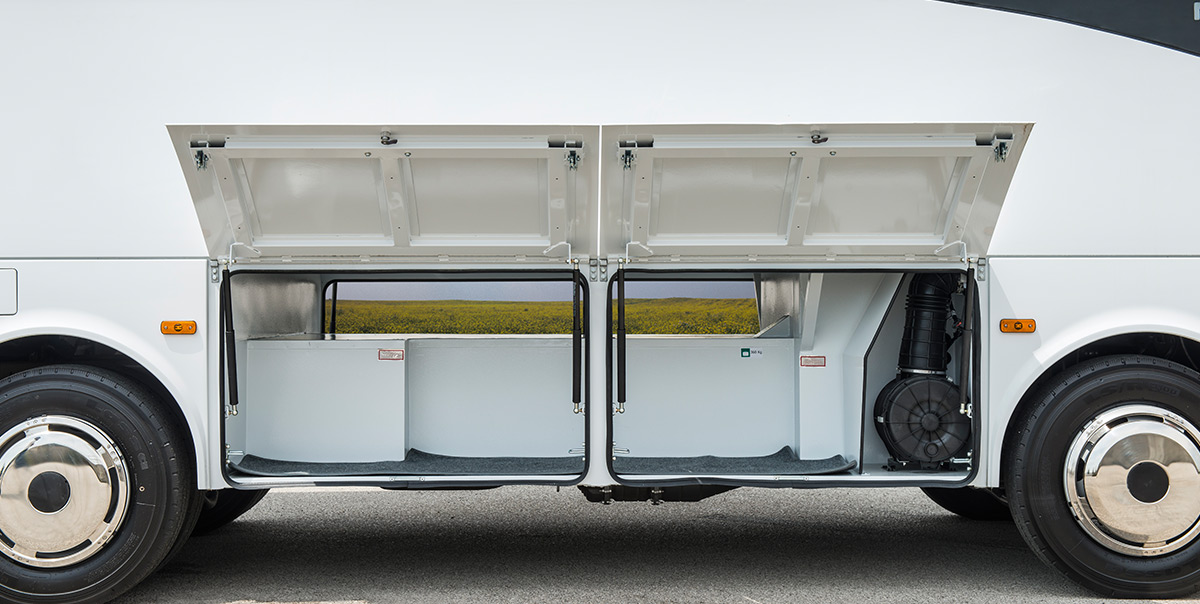

| Luggage Capacity (m3) | 4 |
| Carpet Covering | Opt |
| Luggage Compartment Lighting | S |
| Central Locking System | Opt |
| Interior Luggage Racks | S |
| Electrical System | 24V – 100A |
| Nominal Voltage | 24V |
| Battery | 24V (2x12V)-105 Ah |
| Starter Engine | 24V – 4,5kW |
| Passenger Capacity | From (23 + c + d) To (29 + d) |
Equipments
| Pre-heater | S |
| Air-blowing Type Heater (Front) | S |
| Other | Convector Heater |
| Air Conditioner | Digital Air Conditioner |
| A/C Dashboard Unit For Driver | S |
| Tropical A/C | Opt |
| Cruise Control | Opt |
| Speed Limitor | S |
| Tachograph | Digital Tachograph (S) / MTCO (Opt) |
| Retarder | Opt |
| ABS | S |
| ASR | S |
| Parking Sensor | Opt |
| Immobiliser | S |
| Fire Sensor And Warning System In Engine Compartment | Opt |
| Roof Emergency Exit & Ventilation Hatch | S |
| Side Stripe Stickers | Opt |
| Metallic Colour | Opt |
| Front Door | Single Wing, Pneumatic, Outward Swing (Auto-locking System Over 5 km/h Speed) |
| Rear Door | Single Wing, Pneumatic, Outward Swing (Auto-locking System Over 5 km/h Speed) |
| Remote Control | S (Both Doors) |
| Passenger Window | Single Piece, Tinted |
| Single Glazing | Opt |
| Double Glazing | S |
| Ski Box Brackets and Sockets | Opt |
| Trailer Towing System | Opt |
| Daytime Running Lamp, DRL | S |
| Fog Lamp | S |
| Reverse Gear Warning Beeper | S |
| Driver’s Seat | Ergonomic, Air Operated, Adjustable |
| Driver’s Window | Automatic |
| Front Door Window | Anti-mist Heater |
| Windscreen Blind | S (Electrically Controlled Optional) |
| Electrically Controlled Side Rear Mirrors | Opt |
| Heated Long Arm Mirrors | S |
| Close-proximity Exterior Mirror | S |
| Crew Seat | S |
| Seat Upholstery | Fabric (S) / Leather (Opt) |
| Service Sets (Hostess Button, Reading Lamps) | S |
| Reclining | S |
| Side Sliding | S |
| Footrests | Opt |
| Armrests | Aisle Side (S) / Window Side (Opt) |
| Seat Back Magazine Net | S |
| Seat Back Tray | S |
| Safety Belts | 2 Points (S) / 3 Points (Opt) |
| Ceiling Upholstery | Formica / Fabric (S), FRP (Opt) |
| Side Wall Upholstery | Mocket |
| Floor Covering | Carpet on Vinyl Floor |
| Interior Lighting | Continuous on Ceiling |
| Reading Lamps For Passenger Seats | S |
| Radio & CD Player | S |
| Radio & DVD Player (With MP3) | Opt |
| Speaker | S |
| Headphone Outputs For Passanger Seats | Opt |
| Microphone & Amplifier | S |
| Monitor / LCD | Opt |
| TV tuner | Opt |
| Refrigerator (Front or Rear) | Opt |
| Water Boiler (Tea/Coffee Set) | Opt |
