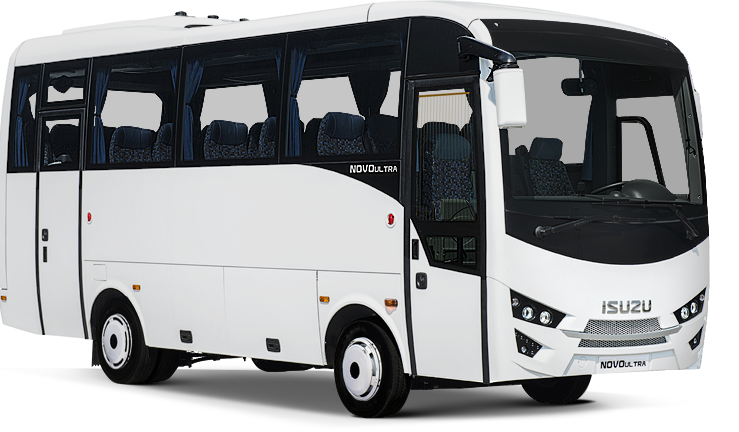

NOVO ULTRA
Anadolu Isuzu’s well-known medium-size coach series is simply glamorous with its new exterior view.
Both interior and exterior of Novo and Novo Ultra models have been redesigned following a comprehensive customer research programme. The new Euro 6 Isuzu engine for Novo Series produces 190 horsepower at 2600 rpm. Novo Series buses offer seat and luggage capacity for up to 29 passengers. Novo series buses are offered in two different versions to the European markets, one at a “Standard” and the other at “Ultra” comfort level.
Technical Features
| Maximum Length | 7305 |
| Maximum Width | 2282 |
| Maximum Height | 3350 |
| Wheelbase | 3385 |
| Front Overhang | 1650 |
| Rear Overhang | 2270 |
| Gross Vehicle Weight | 9800 |
| Model | ISUZU 4HK1E6D |
| Type | Commonrail Turbo Diesel Intercooler |
| Cylinders | 4 |
| Displacement (cc) | 5193 |
| Maximum Power (kw(HP)/rpm) | 190 / 2600 |
| Maximum Torque (Nm/rpm) | 510 /1600-2800 |
| Exhaust Gas Emission Class | Euro VI OBD-D |
| Model | ISUZU MZZ-6 (S) SUZU NEES (Opt) |
| Type | Manuel (S), Automatic (Opt), Overdrive |
| Number of Gears | 6 Forward, 1 Reverse |
| Steering System | Hydraulic, Tilt and Telescopic |
| Tyres | 215/75 R17,5 |
| Front | Parabolic Steel Alloy Leaf Springs |
| Rear | Air Suspension – 2 Bellows – 2 Shock Absorder |
| Front / Rear | Disc / Disc |
| System | Full Air Brake System With ABS and EBS, Dual Circuit, Auto-Adjusted |
| Parking Brake | Air Actuated, Operating on Rear Axle |
| Auxiliary Brake | Exhaust Brake |
| Fuel Tank Capacity (lt) | 150 |
| Adblue Tank (lt) | 16 |

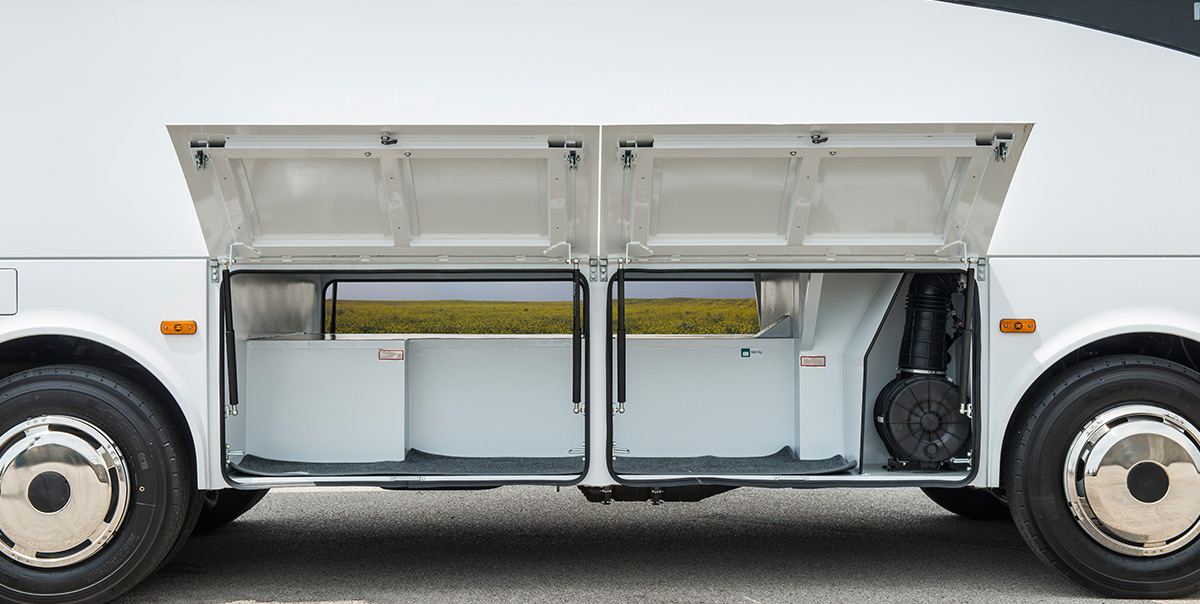

| Luggage Capacity (m3) | 3.5 |
| Central Locking System | Opt |
| Interior Luggage Racks | S |
Battery 24V (2x12V) -105 Ah
| Standard Seat Layout | 27(Passengers)+1(Crew)+1(Driver) |
| Optional Seat Layouts | 29(p)+1(c)+1(d) 26(p)+1(c)+1(d) |
| Crew Seat | Opt |
| Seat Layouts With Wheelchair | Opt |
Equipments
| Pre-heater | Opt |
| Convector Heater (Panel Radiator) | Opt |
| Digital Air Conditioner | S |
| Tropical A/C | Opt |
| Dashboard A/C | S |
| Cruise Control | Opt |
| Speed Limitor | S |
| Tachograph | S |
| ABS | S |
| ASR | S |
| ESC/ESP | S |
| EBS | S |
| AEBS | S |
| LDWS | S |
| Retarder | S |
| Parking Sensor | Opt |
| Immobiliser | S |
| Fire Extinguisher | Opt |
| Engine Compartment Fire Detection System | Opt |
| Engine Compartment Fire Detection and Automatic Fire Supression System | S |
| Tyre Inflation Unit | S |
| Roof Emergency Exit and Ventilation Hatch | S |
| Fog Lamp (Front) | S |
| Day Time Running Lamps (DRL) | S |
| Reverse Gear Warning Beeper | S |
| Metallic Paint | Opt |
| Skibox Brackets & Sockets | Opt |
| Towing Device | S (Front) |
| Number Of Service Doors | 2 |
| Front / Rear Door | Single Wing Outwards Opening (automatic locking system with vehicle speeds above 5km/h) |
| Remote Control | S (Front and Rear) |
| Wheelchair Lift or Preparation | Opt |
| Layers of Glass | Double glazed (S), Single glazed (Opt) |
| Windshield | Single Piece, Tinted |
| Driver’s Window | Electrically Controlled with Heater (S) |
| Front Door Window | Single Glazed with Heating (S) |
| Driver’s Seat | With Air Spings, Adjustable |
| Windscreen Blind | Manual (S), Electrically Controlled (Opt) |
| Electrically Controlled Side Rear Mirrors | Electrically Controlled with Heater (S) Passenger Seats |
| Cloth (Fabric) Upholstery | Cloth on Plastic |
| Artificial Leather Seats | Opt |
| Reclining | S |
| Sliding (Aisle) | S |
| Seat Back Magazine Net | S |
| Seat Back Tray | Opt |
| Armrests | S (Aisle Side), Opt (Window Side) |
| Magony Coating for Armrests | Opt |
| Safety Belts | S (2-Points), Opt (3-Points) |
| Footrests | Opt |
| Ceiling Upholstery | Cloth on Formica |
| Side Wall Upholstery | Mocket |
| Overhead Multi-Sets (Crew Call Button, Reading Lamps) | S |
| Curtains (Passenger Windows) | S |
| Refrigerator (Vertical) | Opt |
| Refrigerator (Horizontal) | Opt |
| Tea/Coffee & Refrigerator Combi Set | Opt* |
| Sound System | Radio, MP3, SD Card, USB (S), DVD Player (Opt) |
| Speaker | S |
| Microphone & Amplifier | S |
| Digital Clock | S |
| LCD Screen (Passenger Compartment) | Opt |
