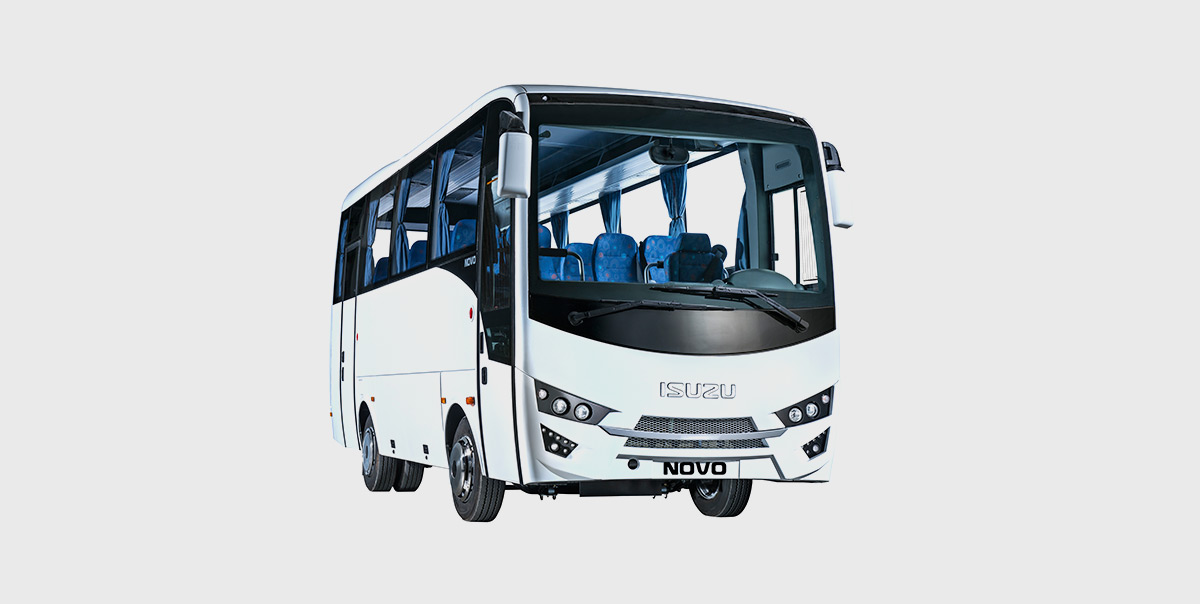

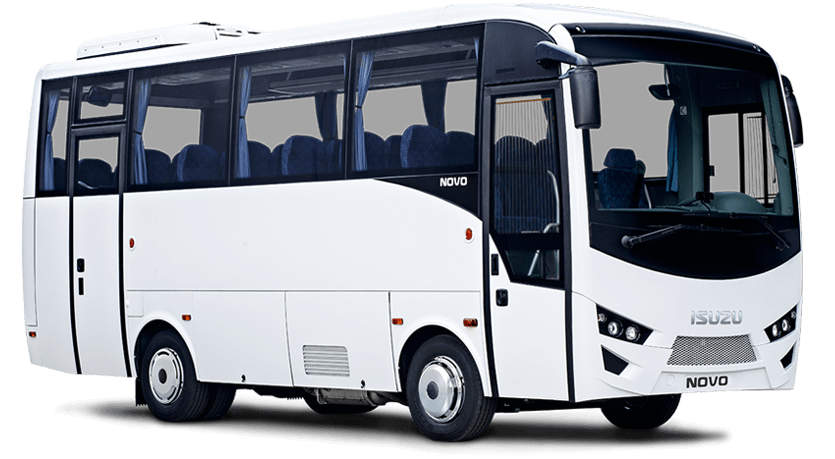

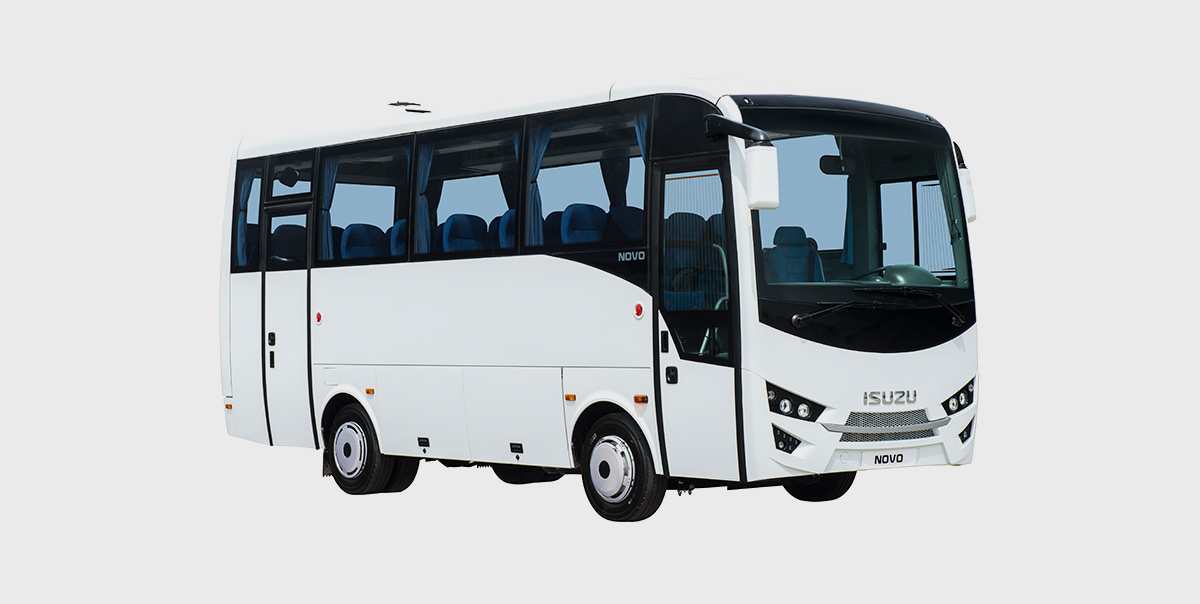

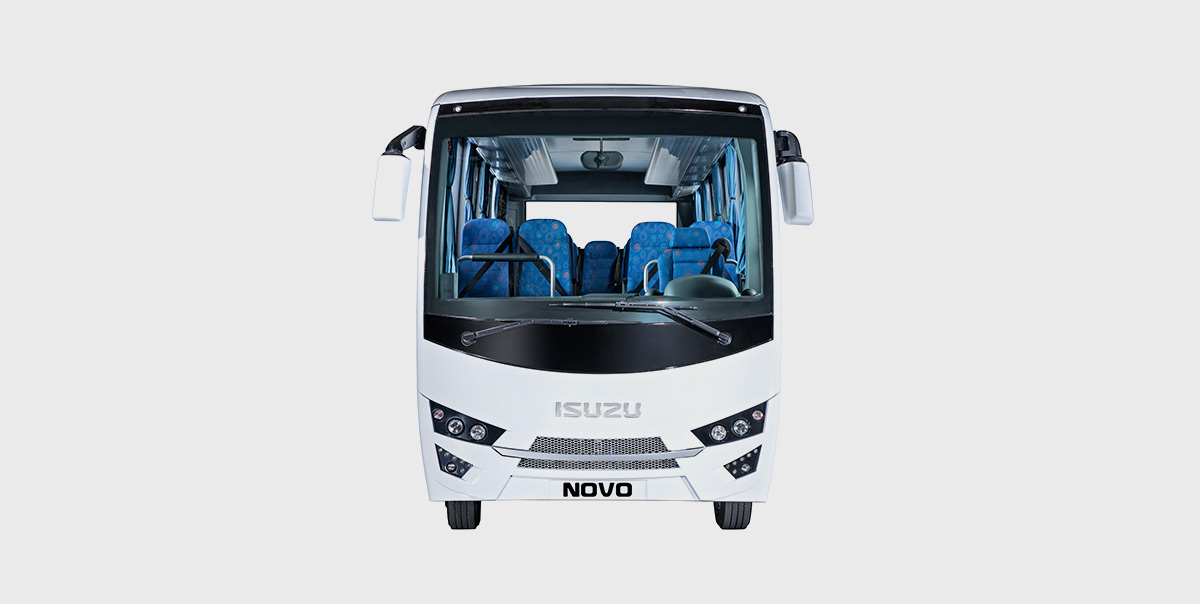

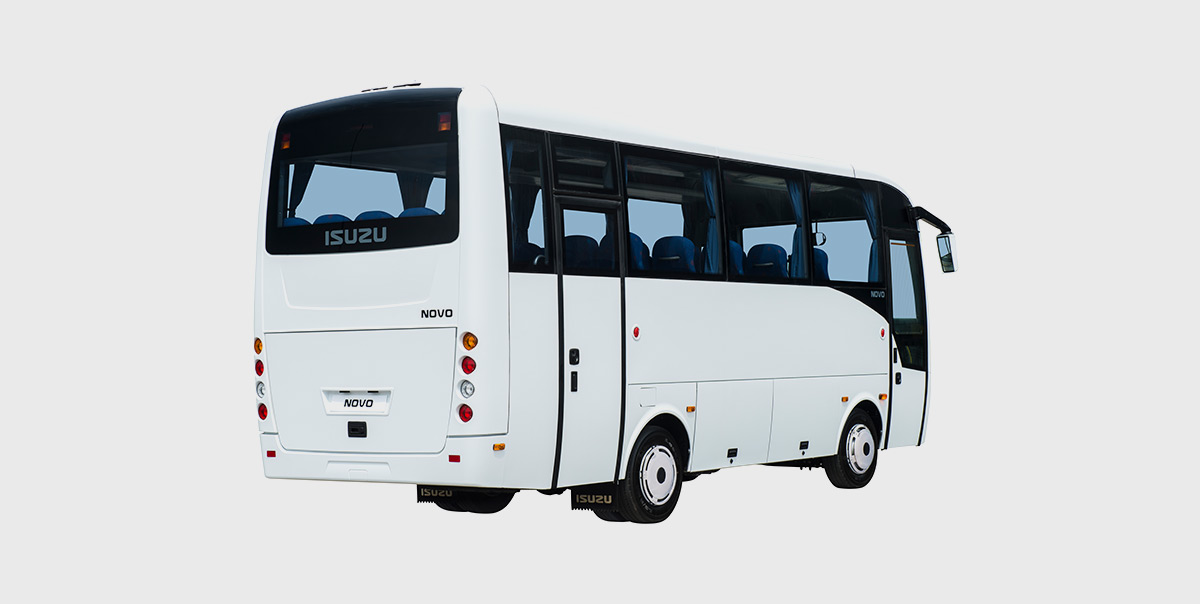

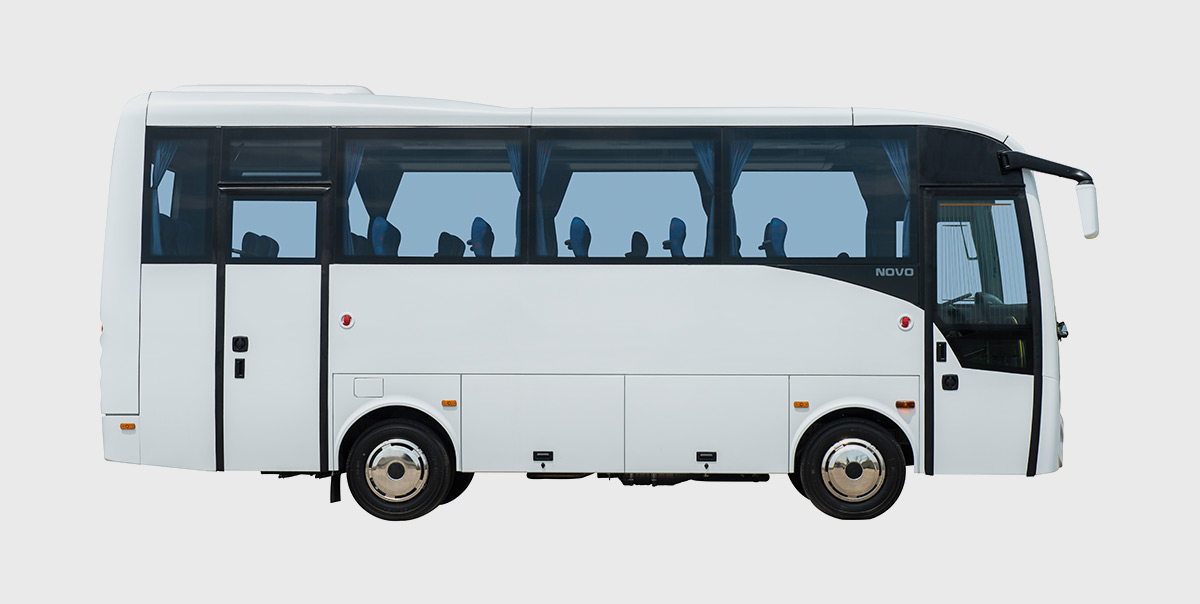

NOVO
Anadolu Isuzu’s well-known medium-size coach series is simply glamorous with its new exterior view.

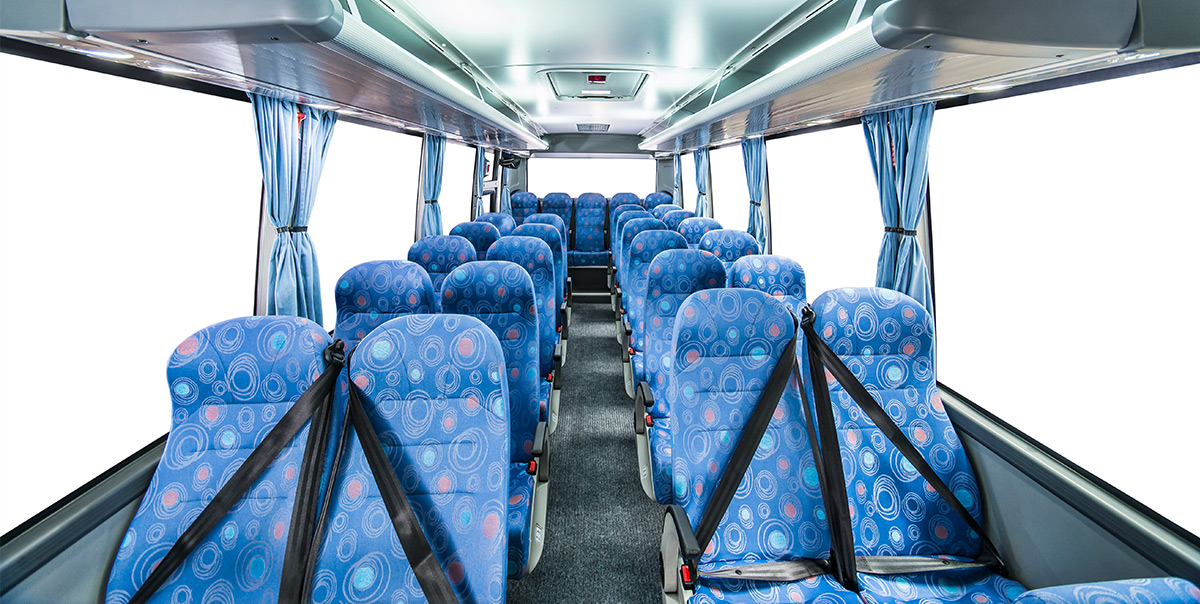

Both interior and exterior of Novo and Novo Ultra models have been redesigned following a comprehensive customer research programme. The new Euro 2 Isuzu engine for Novo Series produces 175 horsepower at 2600 rpm. Novo Series buses offer seat and luggage capacity for up to 29 passengers. Novo series buses are offered in two different versions to the European markets, one at a “Standard” and the other at “Ultra” comfort level.
Technical Features
| Maximum Length | 7305 |
| Maximum Width | 2282 |
| Maximum Height | 3350 |
| Wheelbase | 3385 |
| Front Overhang | 1650 |
| Rear Overhang | 2270 |
| Front Track Width | 1914 |
| Rear Track Width | 1650 |
| Inner Height | 1930 |
| Gross Vehicle Weight | 9100 |
| Curb Weight | 6000-6660 |
| Front Axle Capacity | 3400 |
| Rear Axle Capacity | 5700 |
| Model | 4HK1-TCC (Euro 2) |
| Type | Commonrail Turbo Diesel Intercooler |
| Cylinders | 4 |
| Displacement (cc) | 5193 |
| Maximum Power (PS/rpm) | 175 / 2600 |
| Maximum Torque (Nm/rpm (Kgm/rpm) | (500 /1600-2600) |
| Model | ISUZU MZZ-6U |
| Number of Gears, Type | 6 Forward, 1 Reverse, Overdrive |
| Final Gear Ratio | 4,777 |
| Clutch | Hydraulic Actuated With Diaphram Spring and Single Dry Plate |
| Steering System | Hydraulic, Tilt and Telescopic |
| Minimum Turning Radius (mm) | 6450 |
| Gradeability (%) | 31,9 |
| Tyres | 215/75 R17,5 |
| Front | Parabolic Steel Alloy Leaf Springs |
| Rear | Parabolic Steel Alloy Leaf Springs |
| Front / Rear | Disc / Disc |
| System | Full Air Brake System with ABS, Dual Circuit, Auto-adjusted |
| Parking Brake | Air Actuated, Operating on Rear Axle |
| Auxiliary Brake | Vacuum Assisted Exhaust Brake |
| Fuel Tank Capacity (lt) | 150 |
| Fuel Tank Cap Lock | S |
| Luggage Capacity (m3) | 4 |
| Carpet Covering | Opt |
| Luggage Compartment Lighting | S |
| Interior Luggage Racks | S |
| Electrical System | 24V – 100A |
| Nominal Voltage | 24V |
| Battery | 24V (2x12V)-105 Ah |
| Starter Engine | 24V – 4,5kW |
| From (23 + c + d) To (29 + c + d) |
Equipments
| Pre-heater | O |
| Air-blowing Type Heater (Front) | S |
| Other | Hot Air Blowing Channels |
| Air Conditioner | Digital Air Conditioner |
| Cruise Control | Opt |
| Speed Limitor | S |
| Tachograph | Digital Tachograph (S) / MTCO (Opt) |
| Retarder | Opt |
| ABS | S |
| ASR | Opt |
| Parking Sensor | Opt |
| Immobiliser | S |
| Fire Sensor And Warning System In Engine Compartment | Opt |
| Roof Emergency Exit & Ventilation Hatch | S |
| Side Stripe Stickers | Opt |
| Metallic Colour | Opt |
| Front Door | Single Wing, Pneumatic, Outward Swing (Auto-locking System Over 5 km/h Speed) |
| Rear Door | Single Wing, Pneumatic, Outward Swing (Auto-locking System Over 5 km/h Speed) |
| Remote Control | S (Both Doors) |
| Passenger Window | Single Piece, Tinted |
| Single Glazing | S |
| Double Glazing | Opt |
| Fog Lamp | S |
| Reverse Gear Warning Beeper | S |
| Driver’s Seat | Ergonomic, Air Operated, Adjustable |
| Driver’s Window | Manuel Sliding (S), Automatic (Opt) |
| Front Door Window | Anti-mist Heater |
| Windscreen Blind | S (Electrically Controlled Optional) |
| Electrically Controlled Side Rear Mirrors | Opt |
| Crew Seat | Opt |
| Seat Upholstery | Fabric (S) / Leather (Opt) |
| Service Sets (Hostess Button, Reading Lamps) | S |
| Reclining | S |
| Side Sliding | Opt |
| Footrests | Opt |
| Armrests | Aisle Side (S) / Window Side (Opt) |
| Seat Back Magazine Net | S |
| Seat Back Tray | Opt |
| Safety Belts | 2 Points (S) / 3 Points (Opt) |
| Ceiling Upholstery | Formica (S) / Fabric (Opt), FRP (Opt) |
| Side Wall Upholstery | Artificial Leather |
| Floor Covering | Vinyl (S) / Carpet (Opt) |
| Interior Lighting | Continuous on Ceiling |
| Reading Lamps For Passenger Seats | S |
| Radio & CD Player | S |
| Radio & DVD Player (With MP3) | Opt |
| Speaker | S |
| Headphone Outputs For Passanger Seats | Opt |
| Microphone & Amplifier | Opt |
| Monitor / LCD | Opt |
| TV tuner | Opt |
| Refrigerator (Front or Rear) | Opt |
| Water Boiler (Tea/Coffee Set) | Opt |
