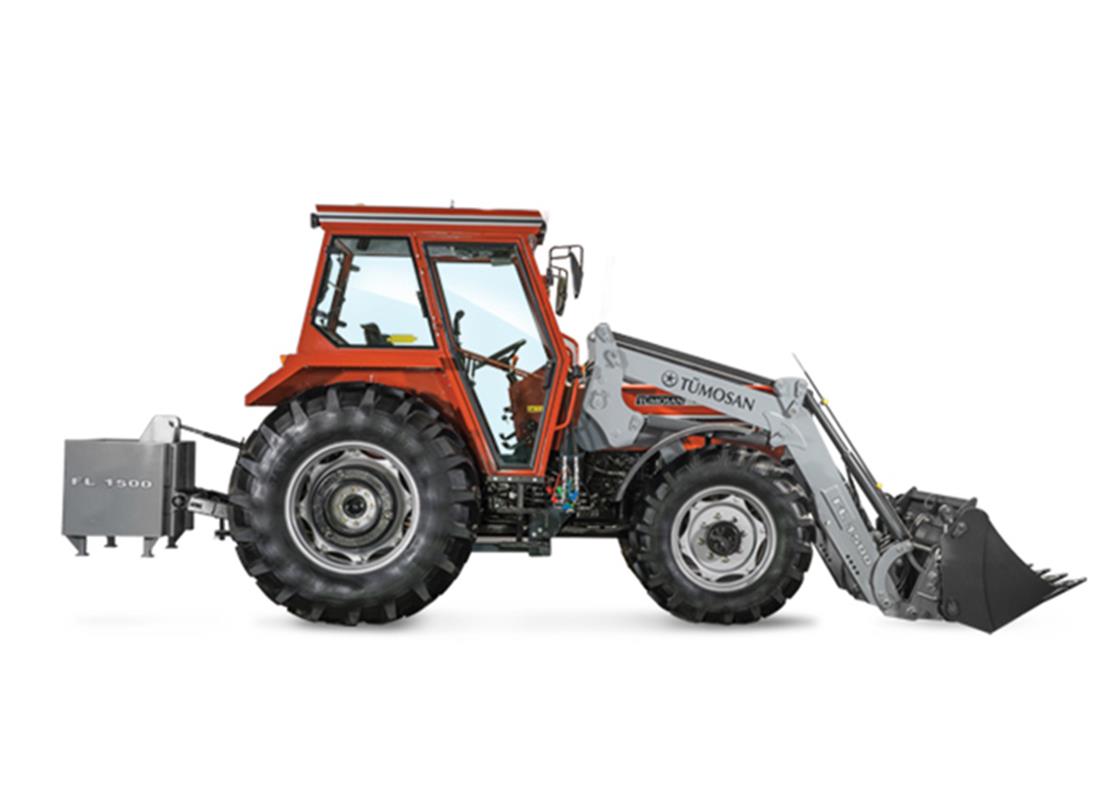

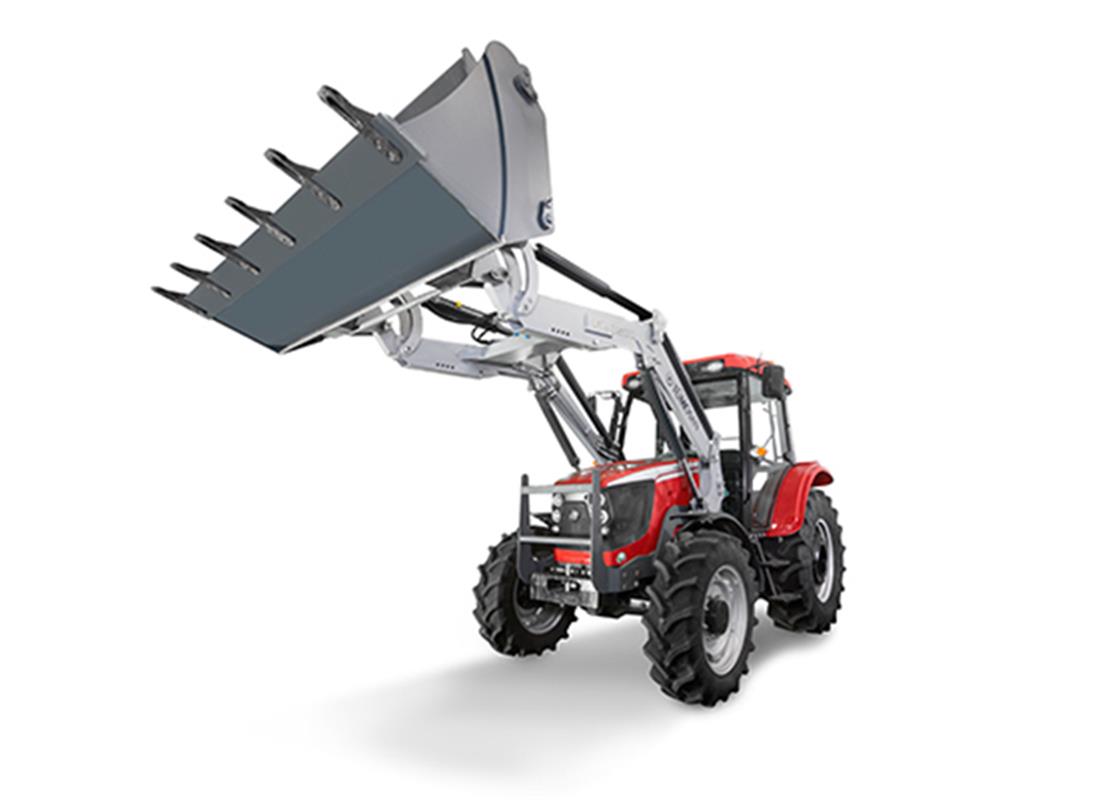

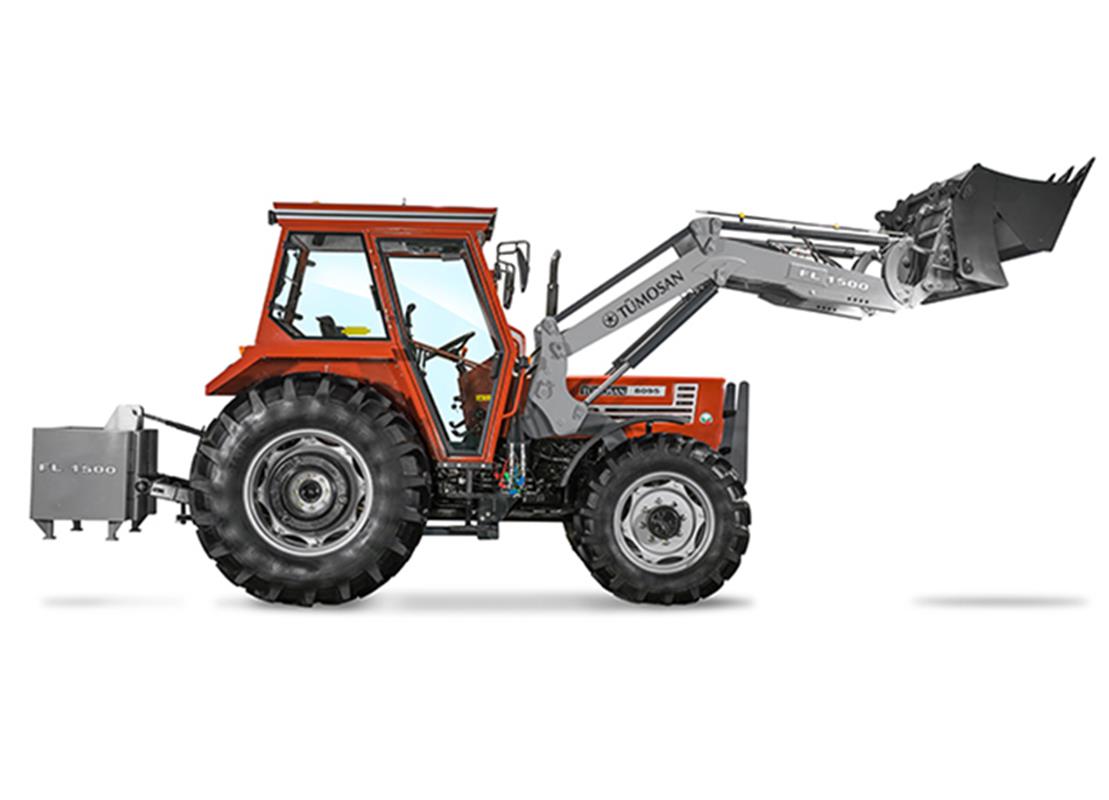

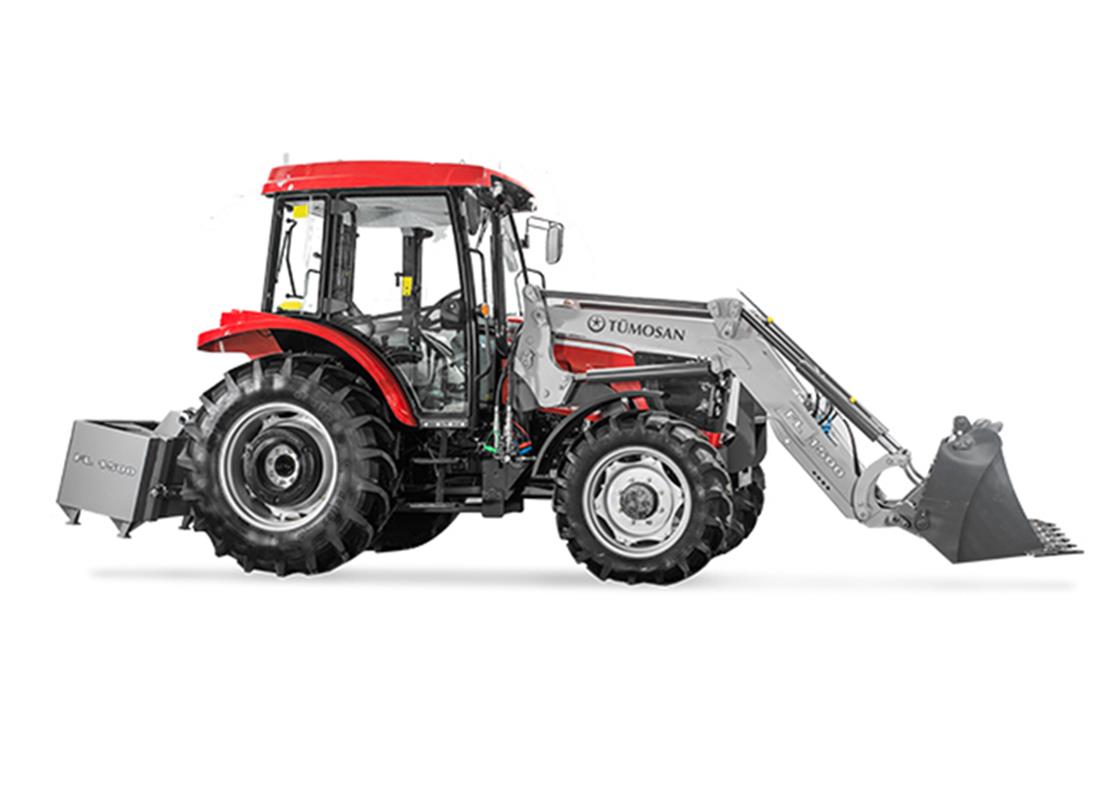

TÜMOSAN FL1000 Front Loaders have been designed in accordance with the 6000 and 6100 series. With a carrying capacity of 1000 kilograms, the eyeful equipment can lift the desired product up to 3.5 meters in 12 seconds at the maximum. When the front loader is not needed, it can be detached easily in a short time, thus it saves time. With the joystick control at the FL1000-model front loaders, the operator can control loading-unloading, opening-closing, and bucket movements in an ergonomic way. And also, easily changing attachments and rear balancer bucket attachment options are provided as standard. Attachments such as opening excavator bucket, grain bucket, fixed type digging bucket, forklift tines, bale tines, roll bale, and snow blade are optionally available.
Max Load Capacity (kg) | 1000 | Maximum Lifting Time (sec) | 12 | |
Bottom Drop Down Bucket (cm) | 170 | Attachment Balancer Lever System | – | |
Joystick Control System | + | Electro-Hydraulic 3rd Line | – | |
Easy Attachment Change System | Optional | Loader Lifter Roller Feature (mm) | 45 x 70 | |
Loader Tilting Roller Feature (mm) | 40 x 63 | Working with Tractor Hydraulic System | Standard |
TÜMOSAN Tractor Series | 6000-6100 | Maximum Lifting Height (m) From Perno Center | 3,5 | |
Maximum Lifting Height (m) From Attachment Bottom Point | 3,3 | Loader Boom Center (m) | 1,75 | |
Attachment Discharge Angle | 58 | Loader Vertical Center (m) | 1,55 | |
Attachment Collecting Angle at Top Point | 55 | Attachment Collecting Angle at Bottom Point | 45 | |
Descending Distance from Ground (m) | 0,1 |
