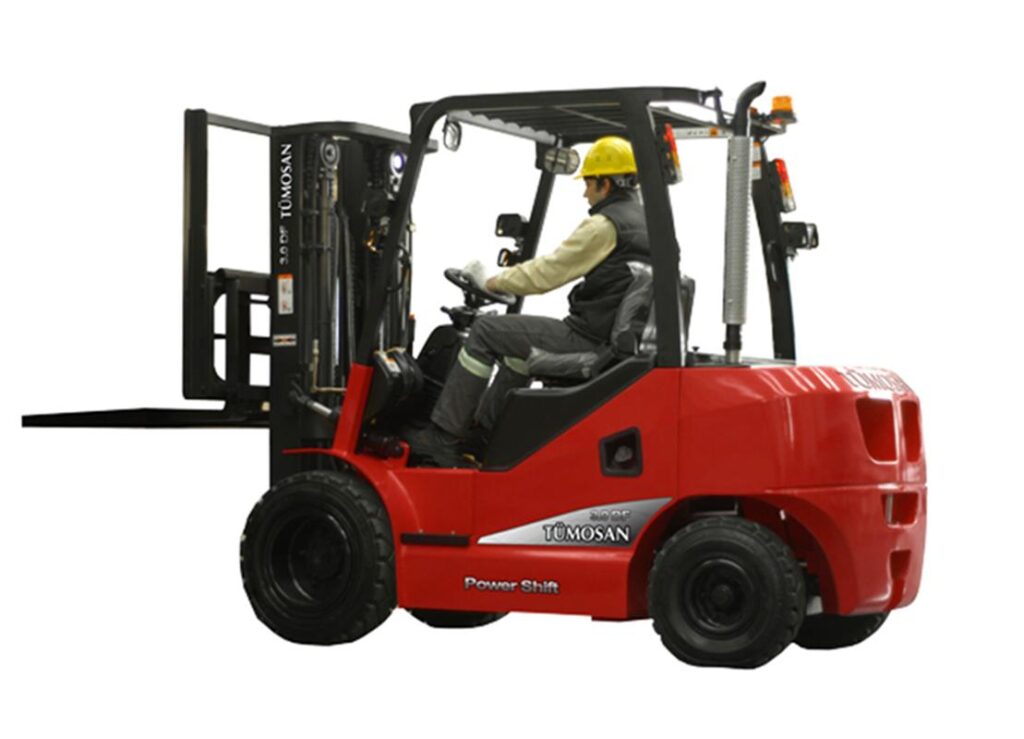

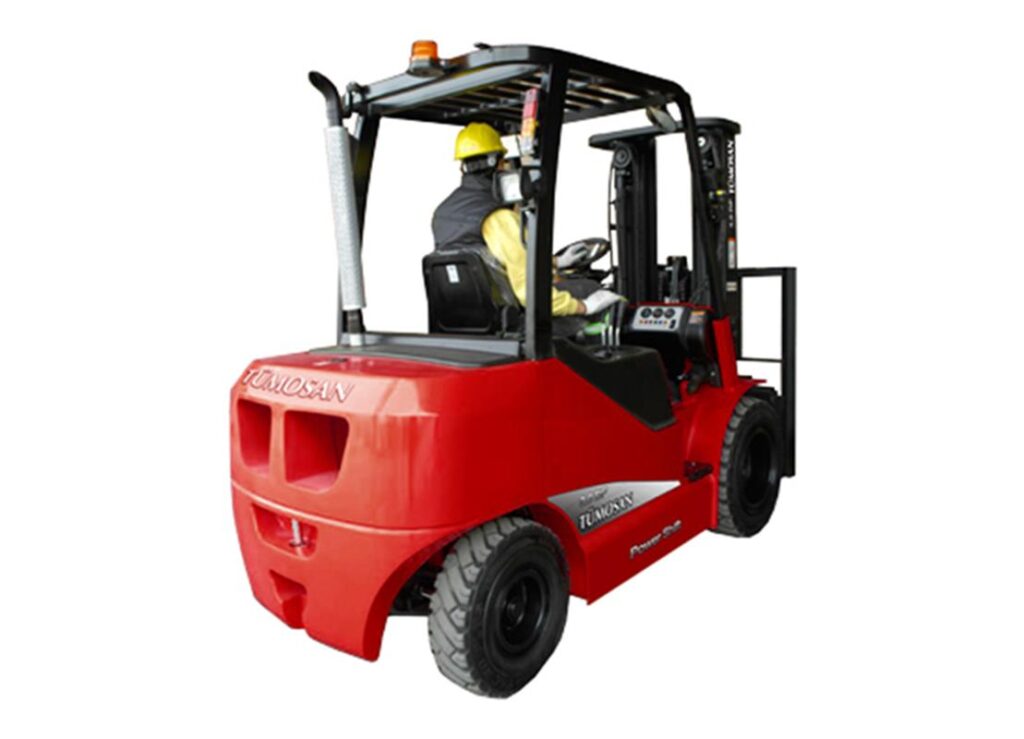

3.5 Diesel Series
With a lifting capacity of 3500 kg, three different mast height, and getting its power from 3-cylinder TÜMOSAN engine, it is your new partner.
- With extraordinary fuel-saving system used in 3.5 DF Model and high performance, the 3-Cylinder TÜMOSAN Engine is a domestic product.
- Less Fuel Consumption compared to the competitors.
- Lifting Capacity of 3500 kg.
- Ergonomic Steering Wheel with the feature of moving forward-backward and downward-upward.
- Comfortable and safe working opportunity offered to the operators by the wide view.
- Commanding the turn and lift functions independently using the hydraulic system with 2 pumps.
- With the options of mast heights of 3300 mm., 4500 mm. and 4700 mm.
- Fully covered front axle against external factors.
- Disk-shaped brakes preserved in the oil bath.
- The durable rear axle that provides superior maneuverability, resistant to overload and hard maneuvers.
- Radiator cooling the Hydraulic Oil with a special oil cooler thus avoiding overheating under high temperatures and under heavy load.
- Automatic Transmission offering a comfortable ride with 1 Level Forward and Reverse shift.
Technical Features
| Producer | TÜMOSAN | Product Design Type | 3.5 DF | |
| Driving: Electric (Battery) | Diesel | Control: Manual, Pedestrian, Standing, Seat | Seating | |
| Load Capacity / Rated Load (Q kg) | 3.500 | Load Center Distance | 500 | |
| Load Distance from Fork Surface to Front Axle Center (x mm) | 490 | Axle Clearance (y mm) | 1750 |
| Service Weight (kg) | 4560 | Front / Rear Axle Weights (Loaded) (kg) | 6935/1075 | |
| Front / Rear Axle Weights (No Load) (kg) | 1710/2800 |
| Tires: Padding (V), Air (P) | P | Front Tire Size | 28x9x15-12 PR | |
| Rear Tire Size | 6.50-10- 10PR | Number of Wheels (Front / Rear) | 2/2 | |
| Wheel Front Track Width (mm) | 1060 | Wheel Rear Track Width (mm) | 985 |
| Tilting Angle (degrees) | 6/12 | Fork Carrier Width (b2 mm) | 1100 | |
| Lift Height From Ground | 2175 | Free Lift (h2 mm) | 155 | |
| Lifting Height (h3 mm) | 3300/4460/4700 | Protective Height | 3300 | |
| Lift Height in Open Position (h4 mm) | 2180 | Seat Height (h7 mm) | 3880 | |
| Length (to Fork Surface) (L2 mm) | 2810 | Grip Height (h10 mm) | 1280 | |
| Fork Dimensions (s / e / 1 mm) | 45/125/1200 | Fork Carrier (ISO 2328, class / type A, B) | 3A | |
| Ground Clearance (Under Lift) (m1 mm) | 135 | Ground Clearance (Under Chassis) (m2 mm) | 195 | |
| Working Range (1,000 x 1,200 pallets) (Ast mm) | 4090 | Turning Radius (Wa mm) | 2400 |
| Travel Speed (With / Without Load) (km / h) | 19/20 | Lift Lifting Speed (Loaded / Unloaded) (mm / s) | 490/530 | |
| Lift Lowering Speed (Loaded / Unloaded) (mm / s) | 420/500 | Climbing Ability (Loaded) (%) | 25 | |
| Parking Brake (Operation / Control) | Manual/Mechanical | Service Brake (Operation / Control) | Foot / Hydraulic | |
| Steering wheel | Hydraulic | Battery, Voltage / Capacity (V / ah) | 12 / 90 |
| Drive Control Type | Automatic | Attachment Pressure (bar) | 180 |
