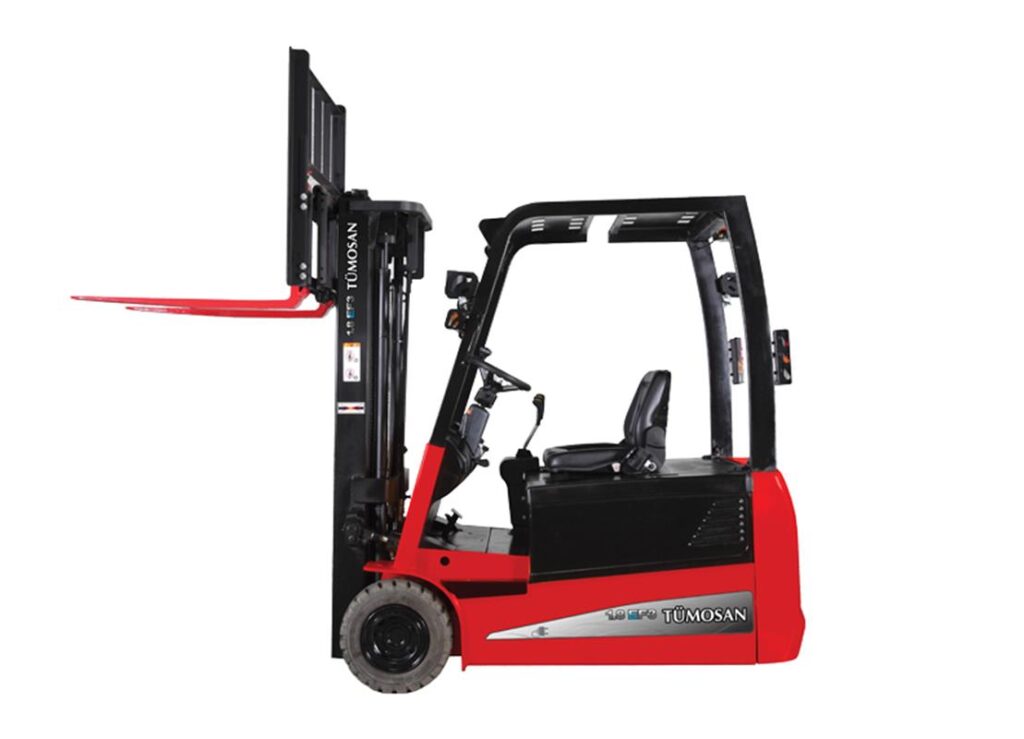

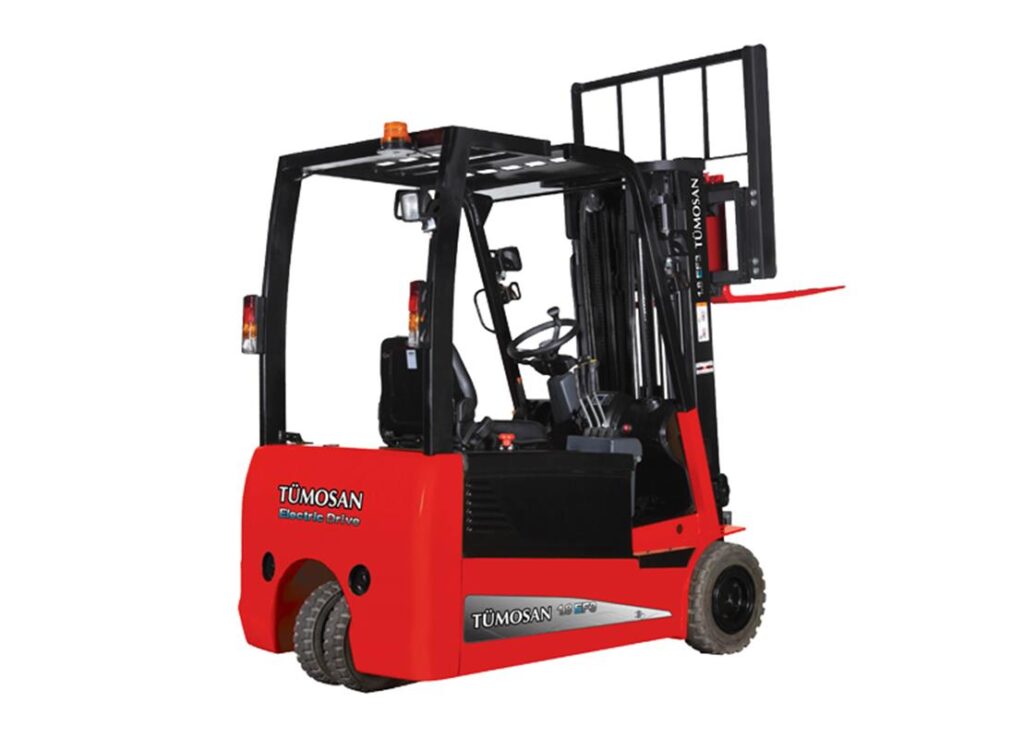

1.8 Electric Forklift Series 3 Wheel
With the lifting capacity of 1800 kg, mast height options of 3300 mm. and 4700 mm. Tümosan Electrical Forklifts
- Highly efficient, 2 independent Traction Motors and 1 Pump Motor
- Emergency Stop Button on Battery Cover
- Easy Battery Replacement with Pulley System Designed on the Chassis
- LCD Monitor; Rear Wheel Position, Battery Charging Level, Speed Indicator, Operating Time and System Errors Display
- Acceleratiıon using Ergonomic Design of Pedal and Control Levers
- With the lifting capacity of 1800 kg, of 2000 kg.
- Convenient operation with its mast height options of 3300 mm and 4700 mm
- High maneuverability with its 3 wheels
Technical Features
| Producer | TÜMOSAN | Product Design Type | 1.8 EF3 | |
| Driving: Electric (Battery) | Electric | Control: Manual, Pedestrian, Standing, Seat | Seat | |
| Load Capacity / Rated Load (Q kg) | 1.800 | Load Center Distance | 500 | |
| Load Distance from Fork Surface to Front Axle Center (x mm) | 395 | Axle Clearance (y mm) | 1450 |
| Service Weight (kg) | 3185 | Front / Rear Axle Weights (Loaded) (kg) | 4400/585 | |
| Front / Rear Axle Weights (No Load) (kg) | 1535/1650 |
| Tires: Padding (V), Air (P) | V | Front Tire Size | 18×7-8 | |
| Rear Tire Size | 15×4 1/2-7 | Number of Wheels (Front / Rear) | 2/2 | |
| Wheel Front Track Width (mm) | 1000 | Wheel Rear Track Width (mm) | 175 |
| Tilting Angle (degrees) | 5/7 | Fork Carrier Width (b2 mm) | 970 | |
| Lift Height From Ground | 2117 | Free Lift (h2 mm) | 135 | |
| Lifting Height (h3 mm) | 3300/4700 | Protective Height | 1985 | |
| Lift Height in Open Position (h4 mm) | 4300 | Seat Height (h7 mm) | 870 | |
| Length (to Fork Surface) (L2 mm) | 2125 | Grip Height (h10 mm) | 480 | |
| Forklift Width (b1 mm) | 1120 | Length Std (Including Fork) (I1 mm) | 3045 | |
| Fork Dimensions (s / e / 1 mm) | 40/80/1200 | Fork Carrier (ISO 2328, class / type A, B) | 2A | |
| Ground Clearance (Under Lift) (m1 mm) | 82 | Ground Clearance (Under Chassis) (m2 mm) | 95 | |
| Working Range (1,000 x 1,200 pallets) (Ast mm) | 3275 | Turning Radius (Wa mm) | 1680 |
| Travel Speed (With / Without Load) (km / h) | (48V) km/s(16) / (36V) km/s (-) | Lift Lifting Speed (Loaded / Unloaded) (mm / s) | (48V)mm/s(410/550) / (36V) km/s (-) | |
| Lift Lowering Speed (Loaded / Unloaded) (mm / s) | 500/450 | Service Brake (Operation / Control) | Hydraulic | |
| Maximum Traction Power (S2-5min) (N) | (S2-5 min.) (N) (with Load) N (15.2) / (No Load) N (14.7) | Maximum Slope Performance (S2-5min) (N) | (S2-5 min) (N) (with load) N (27.5) |
| Drive Control Type | AC |
| Drive Motor Ratings (S2-1h) (KW) | 5,2/7,1 | Pump Motor Ratings S3-15% (S2 10min) (KW) | 15,8 | |
| Battery Voltage, Nominal Capacity (K5) (Ah) | 625 | Battery Weight (kg) | 860 | |
| Battery Dimensions (L / W / H) (mm) | 628/827/630 |
